Запчасти Bobcat BL570 HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM

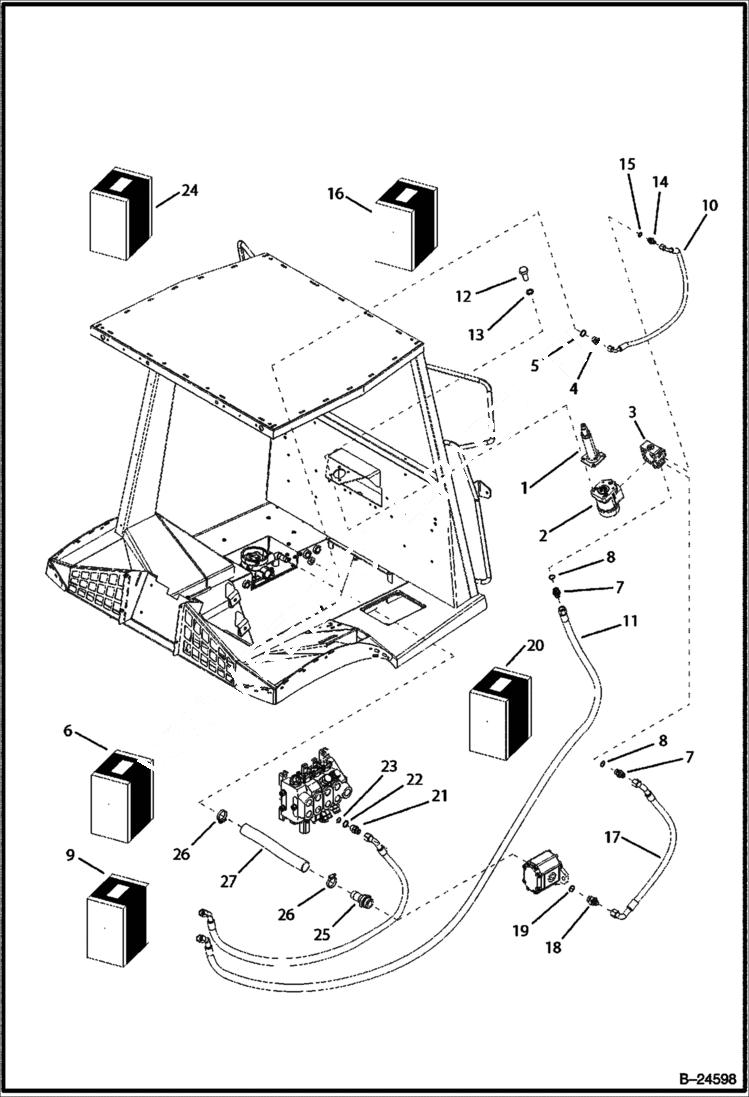

Схема запчастей Bobcat BL570 - HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6965843

STEERING COLUMN steering

2

6961784

STEERING UNIT

3

VALVE NLA - Order 6961784 - Was 6961795 - A

4

FITTING NLA

5

6969371

SEAL

6

6966079

FITTING Ref. 4 & 5

7

FITTING NLA

8

6969371

SEAL

9

6966073

FITTING Ref. 7 & 8

10

HOSE NLA - Print Instructions from BASS - Was 6966139 - A

11

6968812

HOSE

12

1CM1025

BOLT

13

6EM10

WASHER

14

FITTING NLA

15

6969370

SEAL

16

6966070

FITTING Ref. 14 & 15

17

6966738

HOSE

18

FITTING NLA

19

6969380

SEAL

20

6967850

FITTING Ref. 18 & 19

21

FITTING NLA

22

6969385

RING

23

6969373

O RING

24

6966088

FITTING Ref. 21-23

25

6961773

FITTING

26

6960885

BRACE

27

6964543

HOSE

Выбрано товаров: 27
