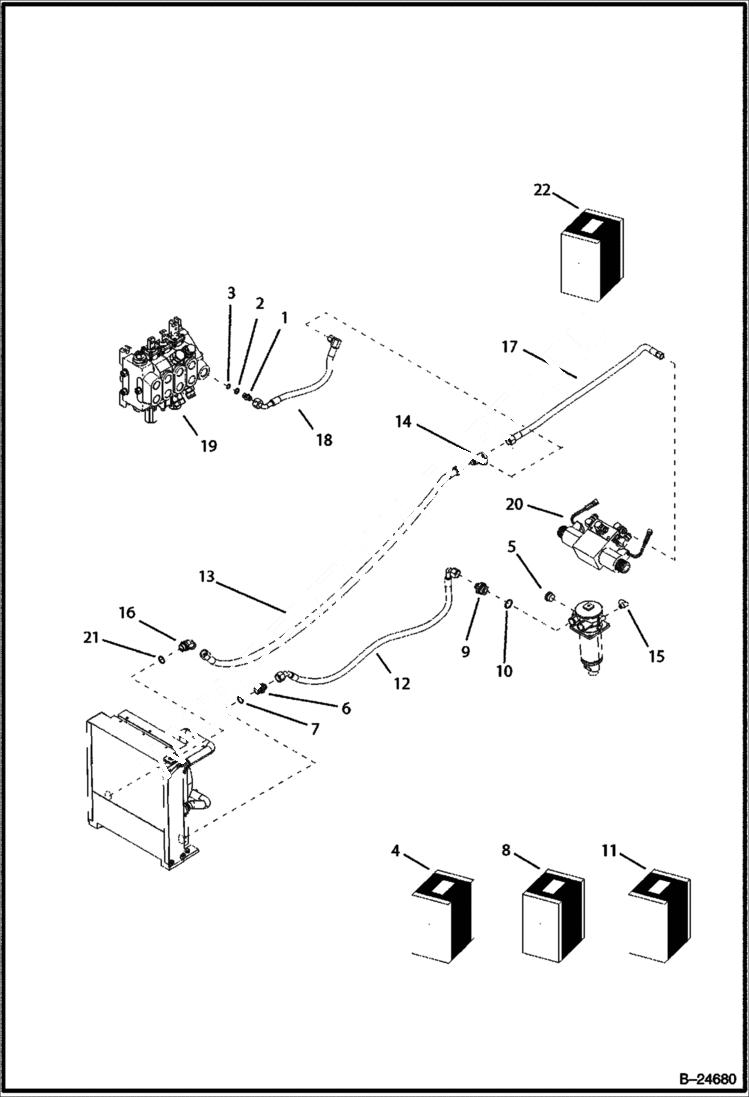

Запчасти Bobcat BL570 HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM

1

FITTING NLA

2

6969385

RING

3

6969373

O RING

4

6973806

FITTING Ref. 1-3

5

6973805

PLUG

6

FITTING NLA

7

6969374

SEAL

8

6966814

FITTING Ref. 6 & 7

9

FITTING NLA

10

6969381

SEAL

11

6966824

FITTING Ref. 9 & 10

12

6966132

HOSE

13

6968813

HOSE

14

6966826

FITTING

15

6968131

FITTING

16

FITTING NLA

17

6968816

HOSE

18

6968815

HOSE

19

6974601

DISTRIBUTOR See Illustration HYDRAULIC CIRCUITRY/ B24589

20

6687776

VALVE ASMBLY See Illustration HYDRAULIC CIRCUITRY/ B24546 Was 6675941 - A

21

6969374

SEAL

22

6969193

FITTING Ref. 16 & 21
