Запчасти Bobcat BL570 HYDRAULIC CIRCUITRY Hydraulic Motor HYDRAULIC SYSTEM

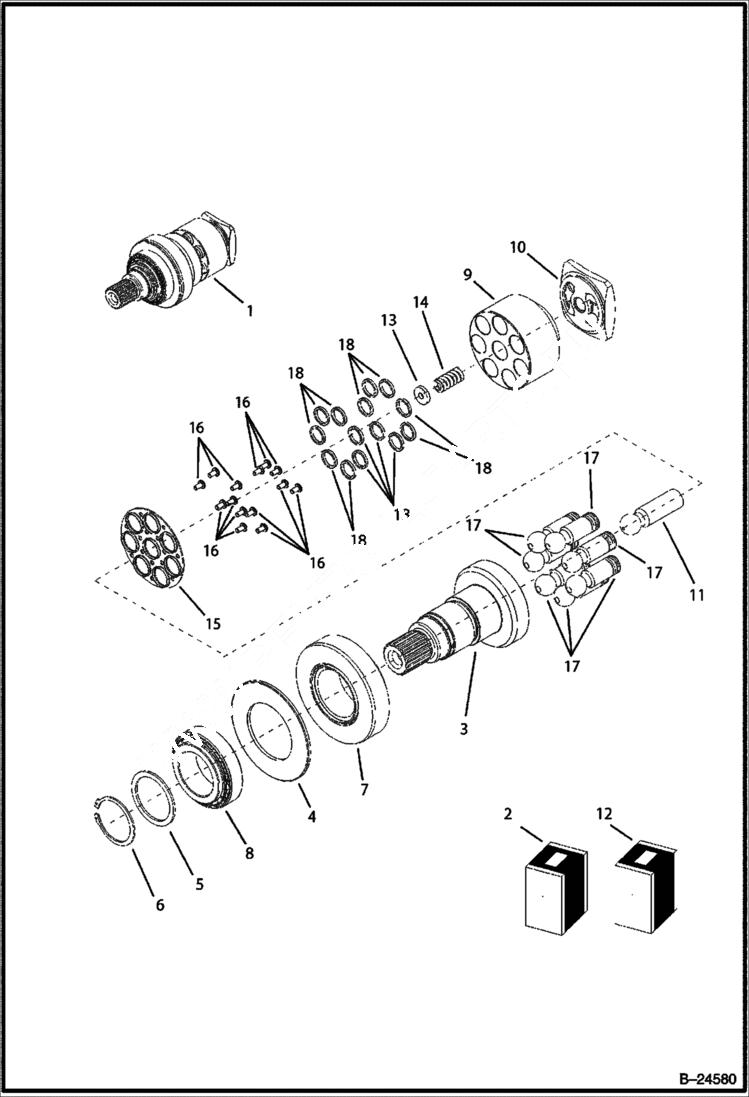

Схема запчастей Bobcat BL570 - HYDRAULIC CIRCUITRY Hydraulic Motor HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6682279

ROTARY GROUP Ref. 2-8

2

6682289

KIT Ref. 9-16

3

6682290

SHAFT

4

6682291

SHIM

5

6967727

PLATE

6

6682292

RING

7

6682293

BEARING

8

6682294

BEARING

9

6967723

CYLINDER

10

6967724

CONTROL LENS

11

6967725

PIN

12

6967726

KIT Ref. 17 & 18

13

6967734

SHIM

14

6967735

SPRING

15

6967736

PLATE

16

6967737

SCREW

17

PISTON NLA - Order 7010679 - Was 6967738 - A

18

6682295

RING

Выбрано товаров: 18
