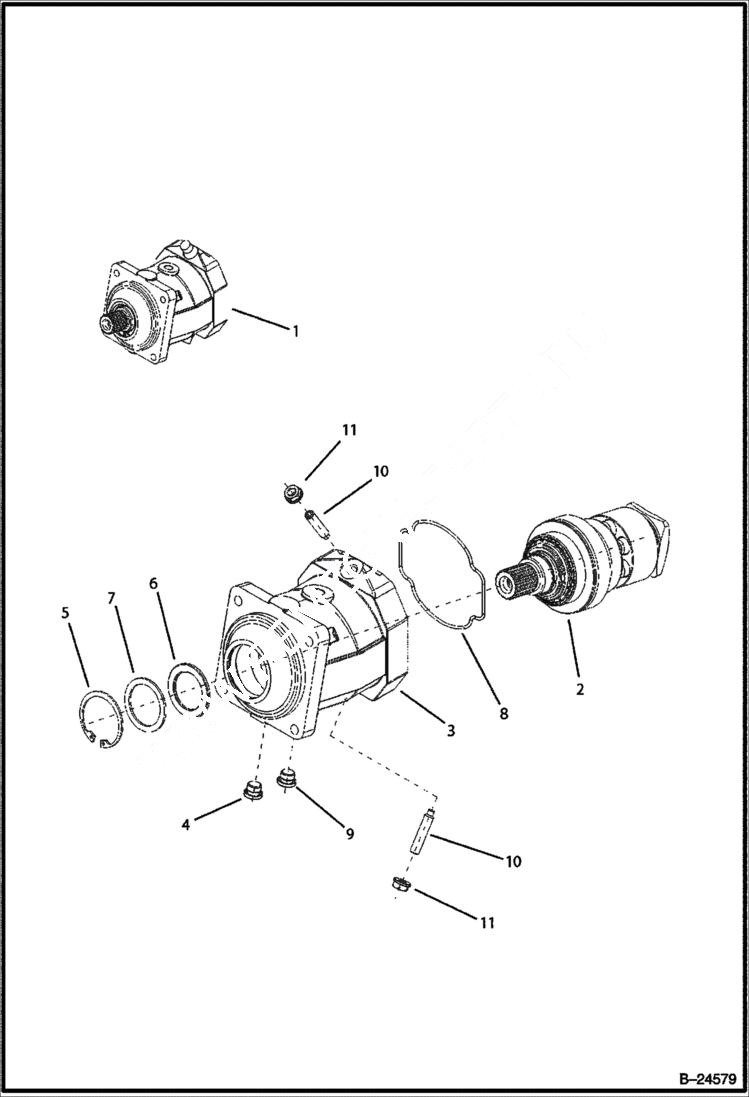

Запчасти Bobcat BL570 HYDRAULIC CIRCUITRY Hydraulic Motor HYDRAULIC SYSTEM

1

PART NLA - Ref. 2-11

2

6682279

ROTARY GROUP

3

6682280

HOUSING

4

6682281

SCREW

5

6682282

RING

6

6682283

RING

7

6682284

PLATE

8

6682285

O-RING

9

6682281

SCREW Was 6682286 - A

10

6682287

SCREW

11

6682288

NUT
