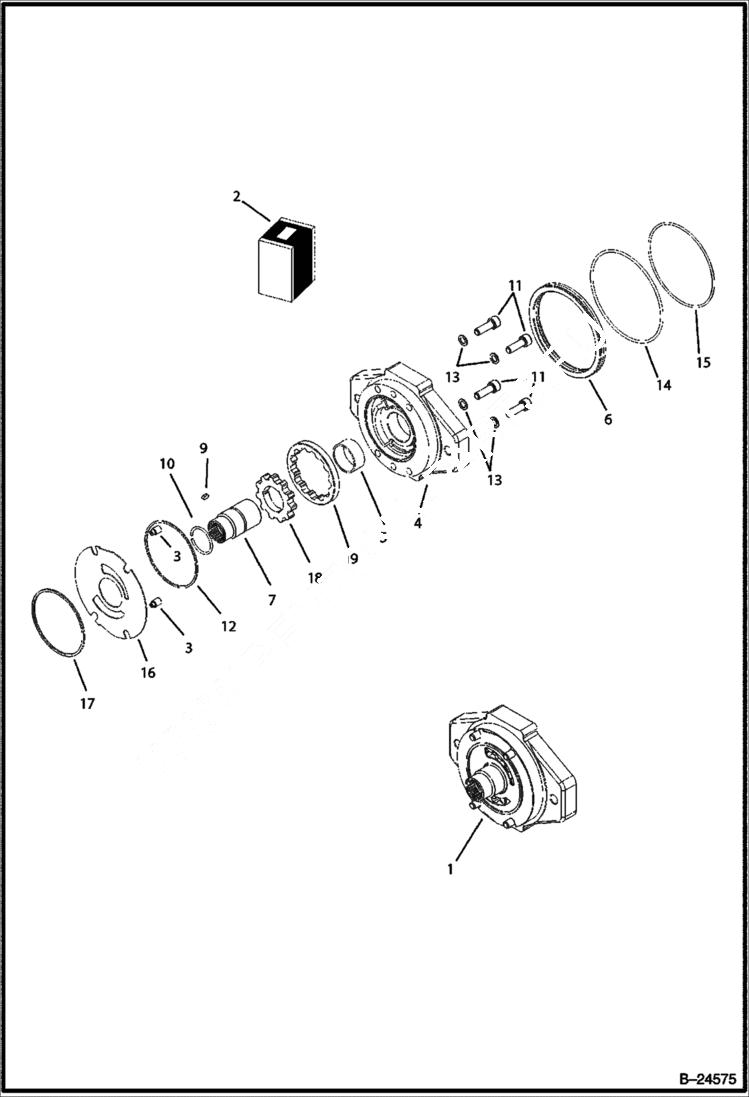

Запчасти Bobcat BL570 HYDRAULIC CIRCUITRY Axial Pump HYDRAULIC SYSTEM

1

6967411

KIT Ref. 3-17

2

6967555

KIT Ref. 18 & 19

3

6967556

PLUG

4

6967557

FLANGE

5

6682917

BUSHING Was 6967513 - A

6

6967558

RING

7

6682973

SHAFT Was 6967559 - A

8

6682943

WHEEL SET Was 6967560 - A

9

6682944

KEY Was 6967561 - A

10

6682945

SNAP RING Was 6967562 - A

11

6685417

SCREW Was 6967563 - A

12

6967564

RING

13

6967565

RING

14

6682880

O-RING Was 6967566 - A

15

6682949

O-RING Was 6967567 - A

16

6967568

PLATE

17

6967564

RING

18

GEAR NSS

19

GEAR NSS
