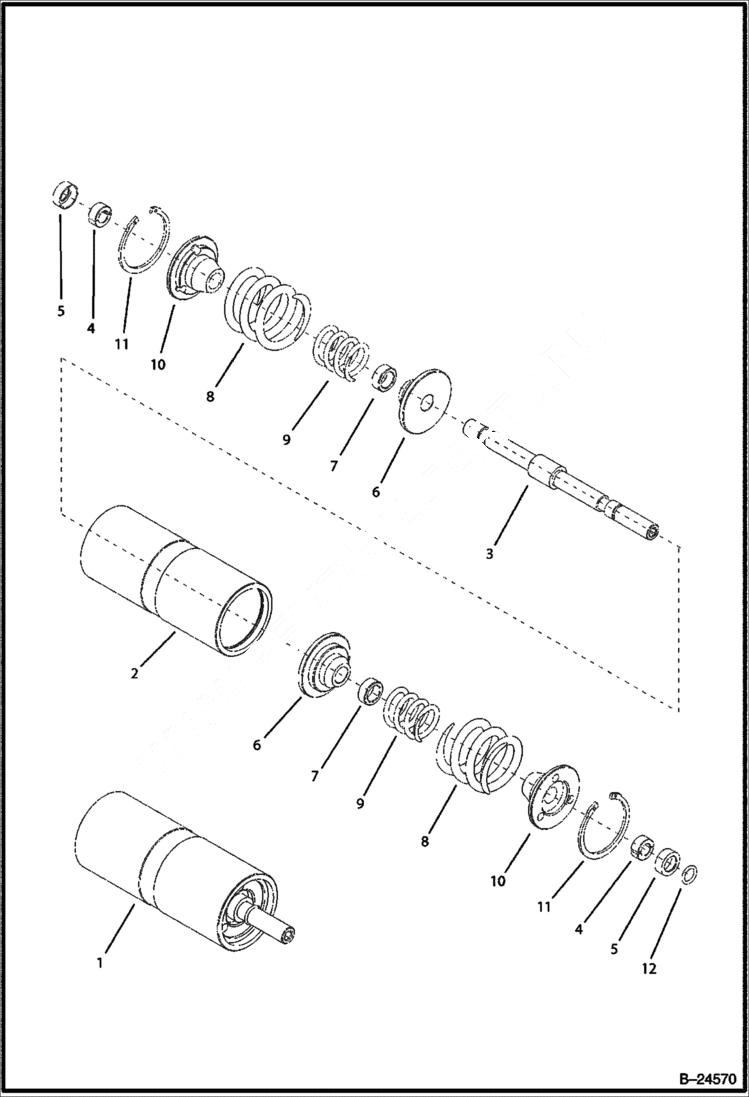

Запчасти Bobcat BL570 HYDRAULIC CIRCUITRY Axial Pump HYDRAULIC SYSTEM

1

6967448

KIT Ref. 2-12

2

6967500

PISTON

3

6967501

ROD

4

6967592

RING ring

5

6967592

RING Was 6692694 - A

6

6967503

COLLAR

7

6967601

RING ring

8

6967504

SPRING

9

6967505

SPRING

10

6967506

COLLAR

11

6967507

RING

12

6682920

O-RING Was 6967508 - A
