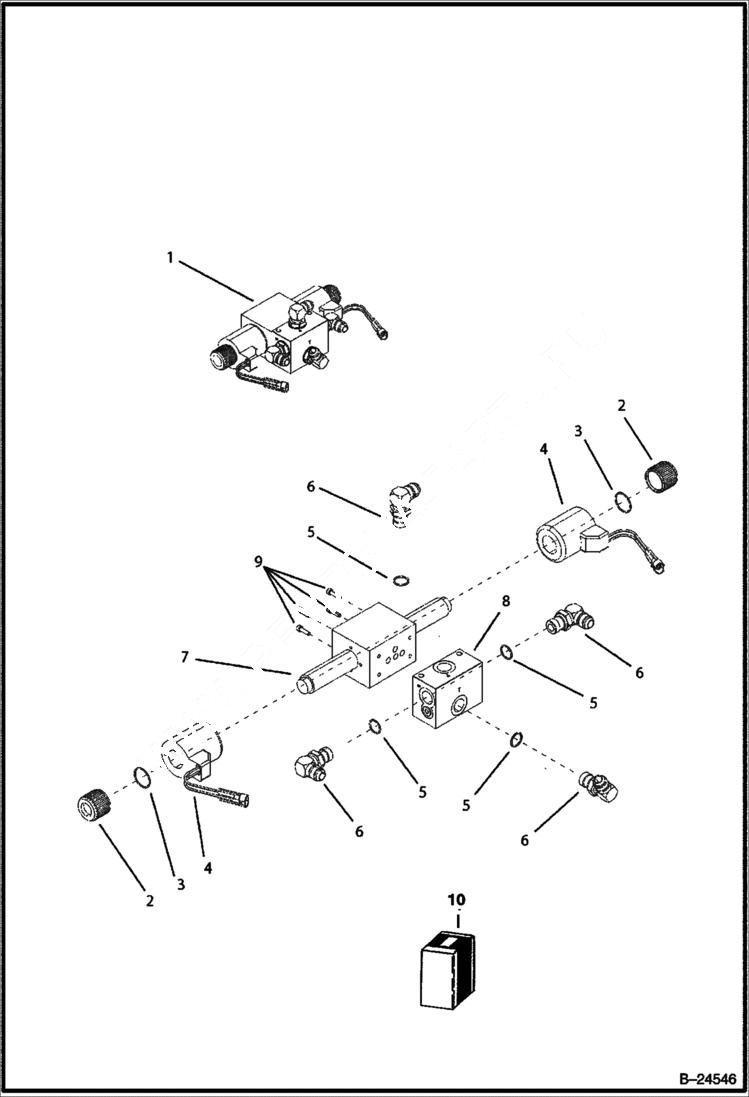

Запчасти Bobcat BL570 HYDRAULIC CIRCUITRY Hydraulic Valve Backhoe HYDRAULIC SYSTEM

1

6687776

VALVE ASMBLY Ref. 2-9 - Was 6675941 - A

2

6969467

NUT

3

6969468

O-RING

4

6969469

SOLENOID

5

6969470

O-RING

6

17KN7

FITTING

7

6969471

VALVE HOUSING

8

6969472

MANIFOLD

9

6969473

BOLT

10

6688633

SEAL KIT
