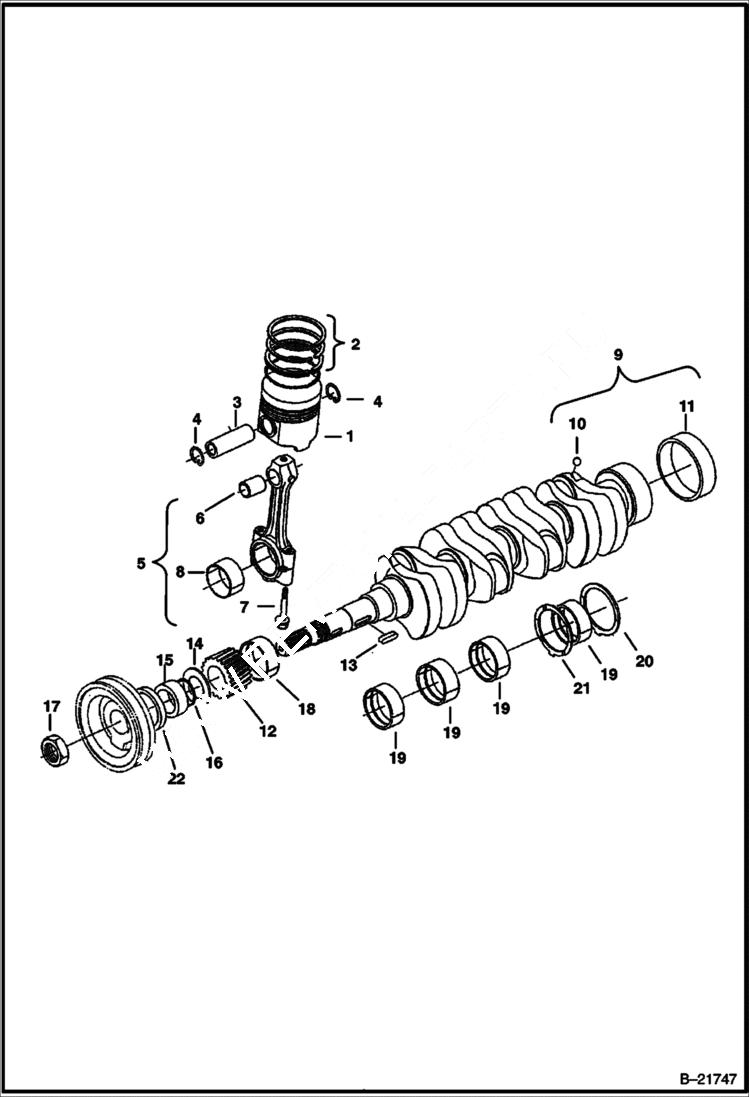

Запчасти Bobcat BL570 PISTON & CRANKSHAFT POWER UNIT

1

6682508

PISTON (1E013-2111)

2

6682509

RING piston

3

6655179

PIN, PISTON ENG

4

6655180

CIRCLIP

5

6655181

ROD, CONNECTING W/Ref. 6, 7 & 8

6

6655243

BUSHING

7

BOLT NLA - Order 2 of 7020998 bolt and be advised of different torque specs

8

7015270

BEARING, ENG ROD CONNECTING rod - std. - Was 6655183 - A

8

6655236

BEARING rod (-0,20 mm)

8

6655237

BEARING rod (-0,40 mm)

9

6674166

CRANKSHAFT

10

6652633

BALL 1/4''

11

6653859

SLEEVE

12

6598142

GEAR

13

3974546

KEY

14

6653861

SLINGER, OIL oil

15

3975337

COLLAR

16

3974577

O RING

17

3974671

NUT

18

6655185

BEARING main - Std.

18

6655239

BEARING main (0,4 mm-.0157)

19

6655186

BEARING main - Std.

19

6655240

BEARING main (0,2 mm-.0079)

19

6655241

BEARING main (0,4 mm-.0157)

20

6653864

METAL, SLIDE

20

3975021

WASHER thrust (0,2 mm-.0079)

20

3975022

WASHER, THRUST thrust (0,4 mm-.0157)

21

6653865

WASHER, THRUST thrust - Std.

21

6654002

WASHER, THRUST +0,20 mm

21

6654003

WASHER, THRUST +0,40 mm

22

7024826

SEAL, OIL oil frt main - Was 6631664 - A
