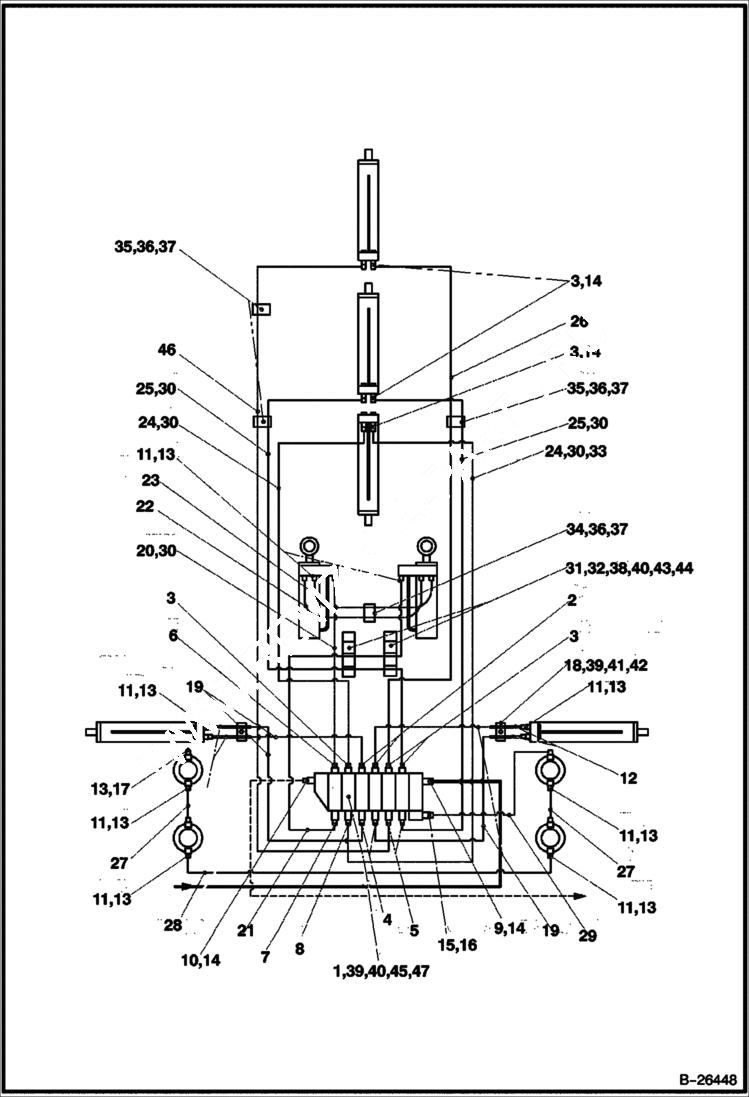

Запчасти Bobcat BL470 HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6962230

REAR DISTRIBUTOR 26444 SIDESHIFT

2

6960720

FITTING

3

6960702

FITTING

4

6960735

FITTING

5

6960706

FITTING

6

6960737

FITTING

7

6960736

FITTING

8

6961013

FITTING

9

6960654

FITTING

10

6961745

FITTING

11

6960704

FITTING

12

6961097

TUBE

13

6962101

SEAL

14

6962096

RING

15

6962814

RING

16

6960790

FITTING

17

6960791

FITTING

18

1CM845

BOLT

19

6962151

HOSE

20

6962424

HOSE

21

6962425

HOSE

22

6962154

HOSE

23

6962155

HOSE

24

6962426

HOSE

25

6962427

HOSE

26

6962428

HOSE

27

6962413

HOSE

28

6962414

HOSE

29

6962429

HOSE

30

6962340

HOSE PROTECTION 700MM

31

6961095

PLATE

32

6961096

CLAMP

33

6960205

CLIP

34

6960890

HOLDER

35

6960756

HOLDER

36

6960755

PLATE

37

1CM835

BOLT

38

1CM880

BOLT

39

6962819

WASHER

40

16DM8

NUT

41

6961093

HOLDER

42

6961094

HOLDER

43

6961132

HOLDER

44

6961133

PLATE

45

6961092

LEVER

46

6962430

HOSE

47

1CM830

BOLT
