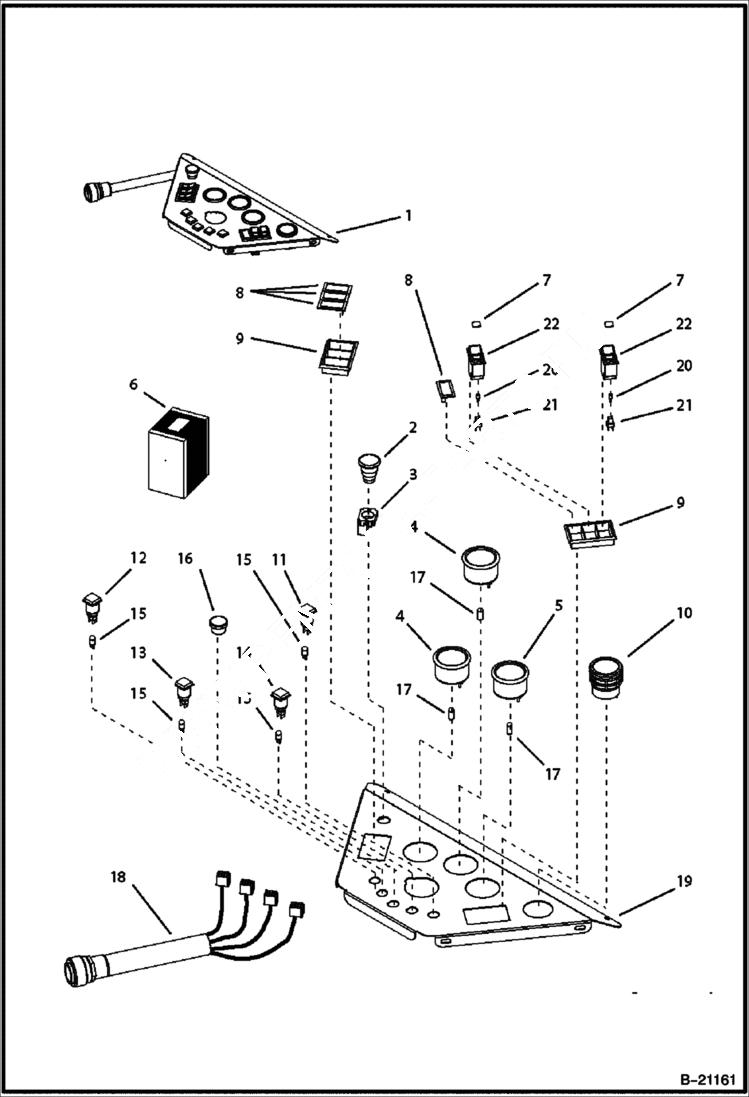

Запчасти Bobcat BL470 ELECTRICAL Dashboard ELECTRICAL SYSTEM

1

6961450

PLATE W/Ref. 2-19

2

6961354

SWITCH

3

6961355

SWITCH

4

6961376

GAUGE temperature

5

6961377

GAUGE Fuel - Ref. 2-5 - Face - OD 2.6'' - W/6 terminals

5

6966725

GAUGE Fuel - Face - OD 2.23'' - W/5 terminals

6

6960567

KIT

7

6961366

SYMBOL lights

8

6961367

COVER switch

9

6961368

FRAME switch

10

6961378

GAUGE

11

6961374

LIGHT

12

6961371

LIGHT

13

6961372

LIGHT

14

6961373

LIGHT

15

6961370

BULB

16

6962265

COVER

17

6961375

BULB

18

6962114

HARNESS

19

6962061

PANEL

20

6960577

SWITCH

20

E6-30-002

KEY, IGNITION key

21

LAMP NLA

22

BODY NLA
