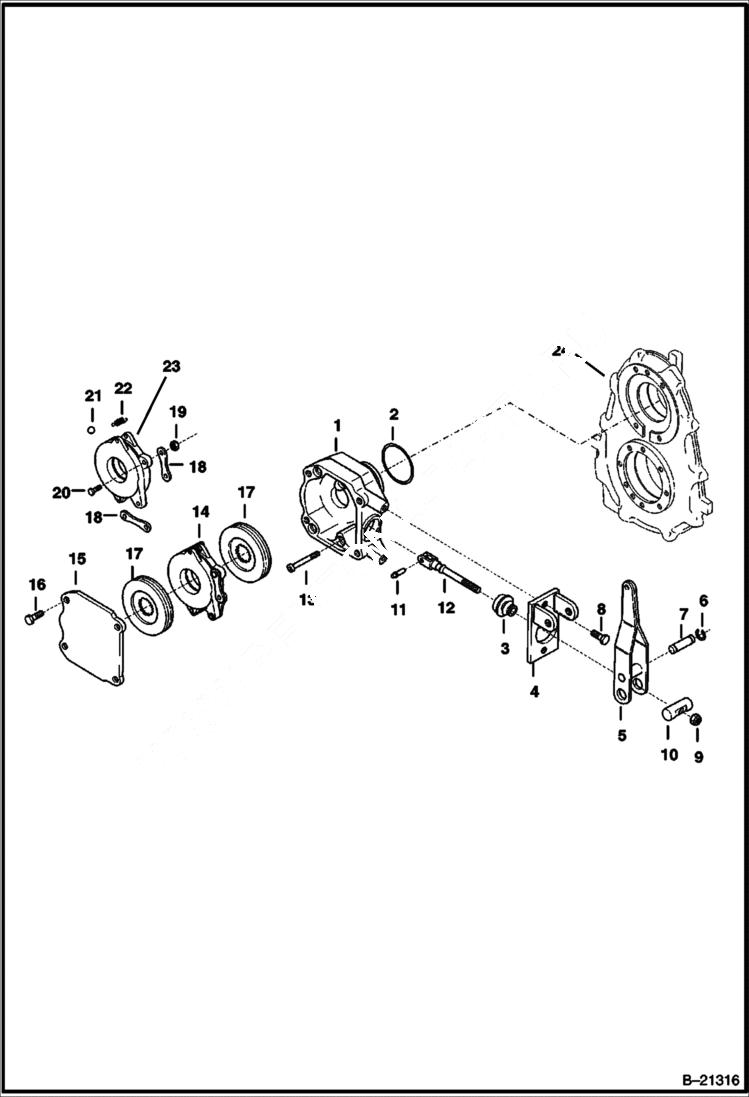

Запчасти Bobcat BL470 REAR AXLE AXLES

1

6962635

HOUSING brake

2

6962636

O-RING

3

6962637

COVER

4

6962638

LEVER

5

6962639

LEVER

6

6962640

RING

7

6962641

PIN

8

6962642

BOLT

9

6962643

NUT

10

6962644

SPACER

11

6962645

PIN

12

6962646

ROD brake

13

6962647

BOLT

14

6962648

BODY actuator assy - W/Refs. 18 - 22

15

6962649

COVER brake

16

6962650

BOLT

17

6962651

DISC

18

6962652

ROD

19

6962653

NUT

20

6962654

SCREW

21

6962655

BALL

22

6962656

SPRING

23

HOUSING NLA

24

6962601

HALF-HOUSING
