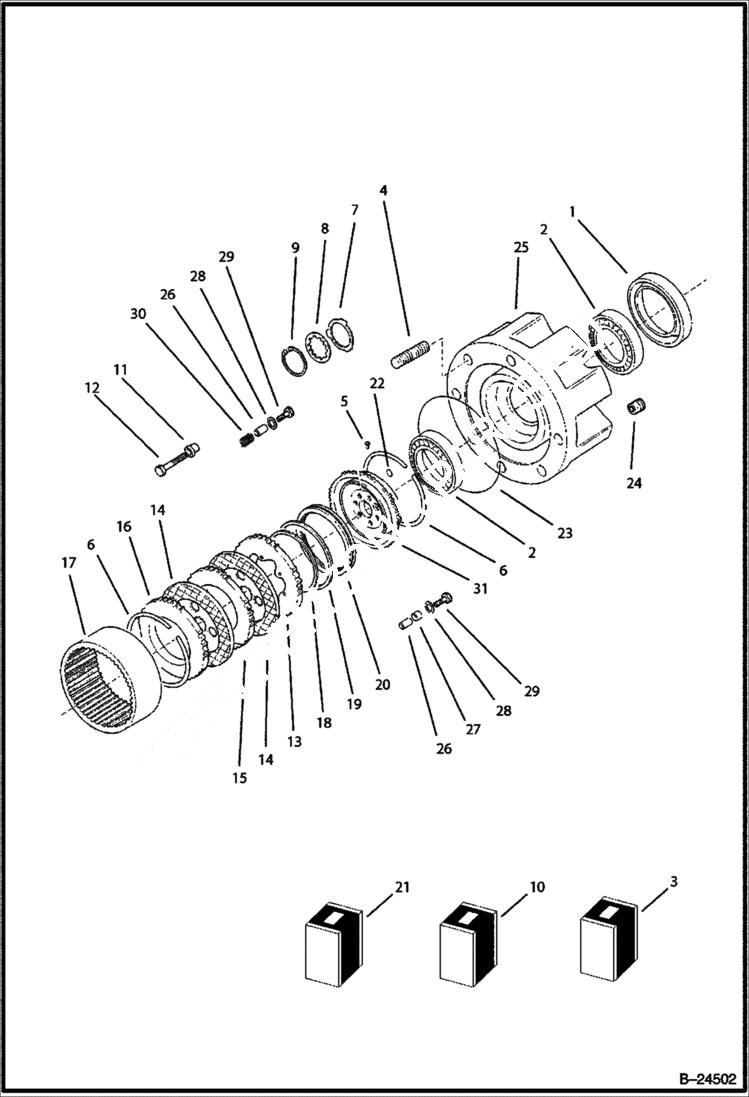

Запчасти Bobcat BL470 REAR AXLE AXLES

1

6969397

SEAL RING

2

6962471

BEARING Was 6962581 - A

3

6962502

HUB KIT wheel hub - W/Ref. 4 - Was 6962582 - A

4

6962536

STUD

5

6962583

RIVET

6

6962541

LOCK RING lock

7

6962348

RING

8

6969398

WASHER

9

6969399

WASHER thrust

10

6962584

KIT self-adjust - W/Ref. 18 - 20

11

6962547

BUSH

12

6962552

BOLT

13

6969400

PLATE

14

6962586

PLATE

15

6962587

PLATE

16

6962588

GEAR

17

6962589

GEAR

18

6962590

RING

19

6962591

RING

20

6962592

PISTON

21

6969401

WHEEL

22

6962594

O-RING

23

6962595

O-RING

24

6962498

PLUG

25

BODY NLA

26

BUSH NLA

27

PIN NLA

28

WASHER NLA

29

BOLT NLA

30

SPRING NLA

31

WHEEL NLA
