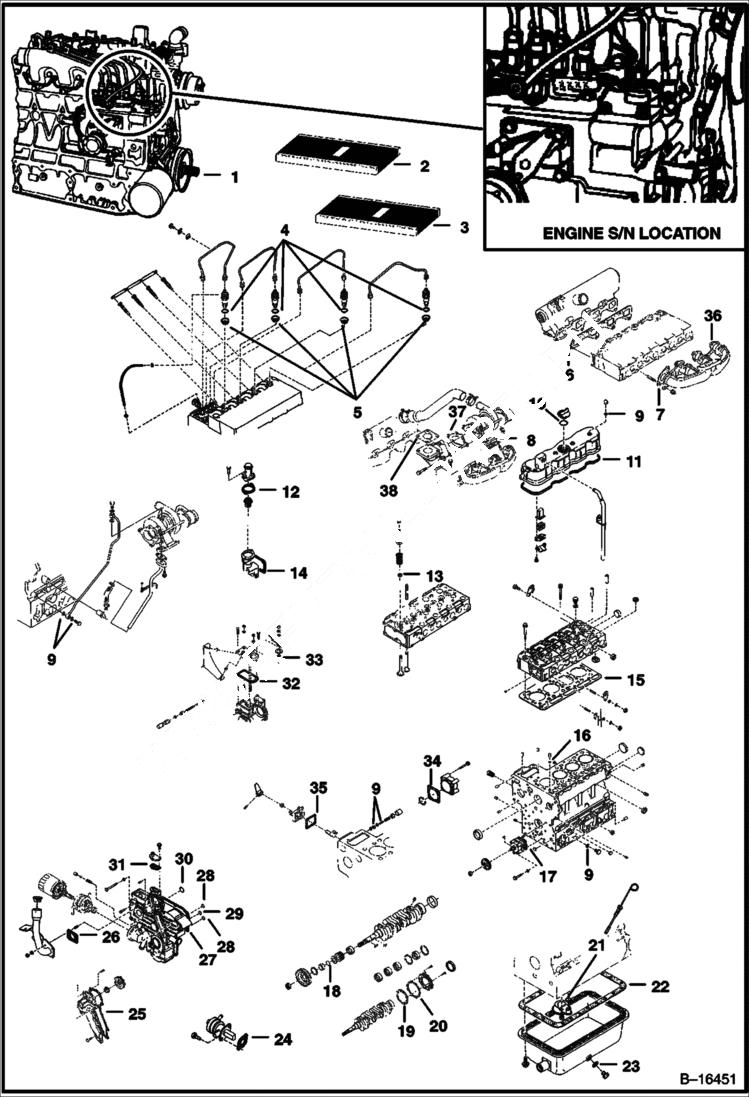

Запчасти Bobcat BL470 ENGINE & GASKET KITS (Kubota - V2003T) POWER UNIT

1

6961498

ENGINE Does not include starter, alternator, flywheel, & flywheel housing

1

SHORT BLOCK NLA

2

6676059

GASKET KIT Upper - Ref. 6-16 & 36-37

3

7003006

GASKET, ENG LOWER lower - Does not include front & rear crankshaft oil seals - Ref. 17-25 & 27-35 - Was 6657402 - A

4

6655218

GASKET See Illustration NOZZLE HOLDER & GLOW PLUG/ B21756

5

6655872

HEAT SEAL See Illustration NOZZLE HOLDER & GLOW PLUG/ B21756

6

6666811

GASKET

7

6666781

GASKET See Illustration EXHAUST MANIFOLD/ B26453

8

6675636

GASKET See Illustration TURBO CHARGER/ B21769 turbo

9

3974095

MET-GASK See Illustration HEAD COVER/ B21742 See Illustration OIL PIPE/ B21771 See Illustration ENGINE STOP LEVER/ B21939

10

6684782

O-RING See Illustration HEAD COVER/ B21742 - oil fill plug - Was 3966602 - A

11

6598136

GASKET, COVER VALVE See Illustration HEAD COVER/ B21742

12

6684863

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B21763 thermostat cover - Was 6732199 - B

13

6653830

SEAL, STEM VALVE See Illustration VALVE & ROCKER ARM/ B21767

14

6666802

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B21763 water flange

15

6675643

GASKET See Illustration CYLINDER HEAD/ B21740 cylinder head

16

3974038

O RING See Illustration CYLINDER HEAD/ B21740 See Illustration CRANKCASE/ B13159

17

6666782

GASKET See Illustration CRANKCASE/ B13159

18

3974577

O RING See Illustration PISTON & CRANKSHAFT/ B21747 - crankshaft frt

19

6684788

GASKET See Illustration MAIN BEARING CASE/ B21745 Was 6655165 - A

20

6666814

GASKET See Illustration MAIN BEARING CASE/ B21745

21

3966516

O RING See Illustration OIL PAN/ B21739

22

6666817

GASKET See Illustration OIL PAN/ B21739 - oil pan

23

6680484

GASKET See Illustration OIL PAN/ B21739 Was 3974403 - B

24

3974502

GASKET See Illustration FUEL PUMP/ B21757 fuel pump

25

6666804

GASKET See Illustration WATER PUMP/ B21764

26

6714543

GASKET See Illustration GEARCASE/ B21741 Was 6666785 - A

27

6666800

GASKET See Illustration GEARCASE/ B21741 gearcase

28

3966515

O RING See Illustration GEARCASE/ B21741

29

6655162

O-RING See Illustration GEARCASE/ B21741

30

3966530

O RING See Illustration GEARCASE/ B21741

31

6666803

GASKET See Illustration GEARCASE/ B21741 water return flange

32

6666792

GASKET See Illustration SPEED CONTROL PLATE/ B21755

33

3966512

O RING See Illustration SPEED CONTROL PLATE/ B21755

34

6666827

GASKET See Illustration FUEL CAMSHAFT/ B21749

35

6666783

GASKET See Illustration ENGINE STOP LEVER/ B21939 pump cover

36

6666791

GASKET See Illustration EXHAUST MANIFOLD/ B26453

37

6675637

GASKET See Illustration TURBO CHARGER/ B21769

38

6727753

GASKET muffler
