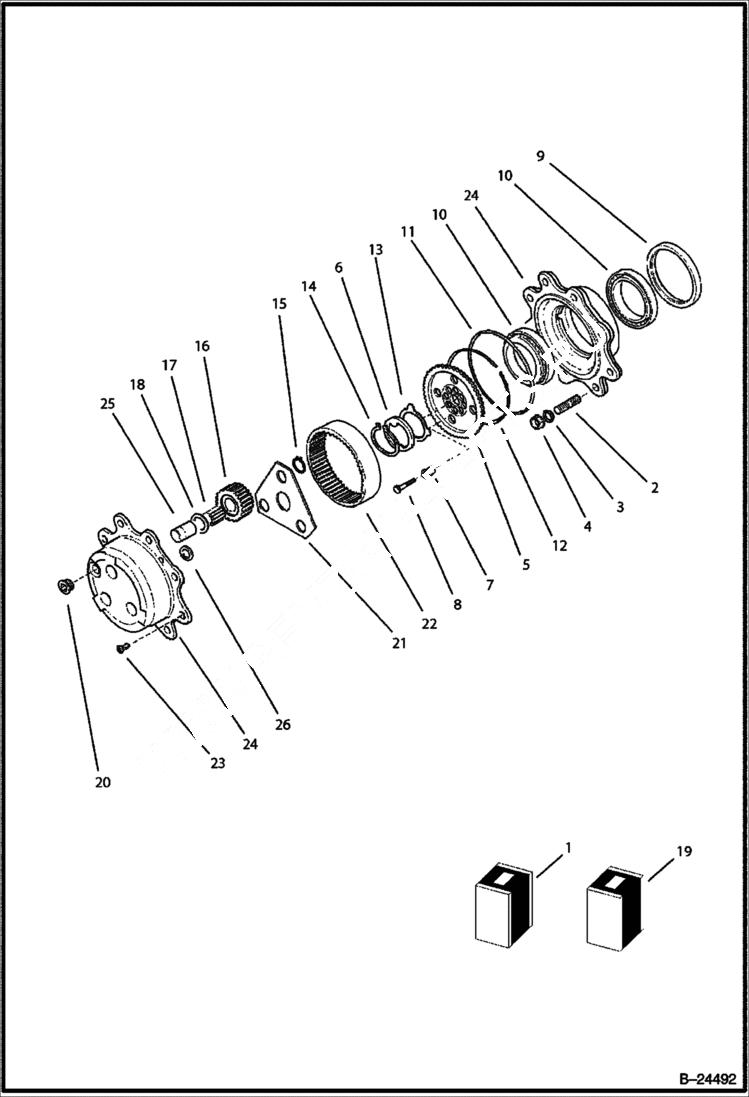

Запчасти Bobcat BL370 FRONT AXLE AXLES

1

6962461

HUB KIT Ref. 2, 24

2

6962536

STUD Qty valid only for (1) wheel hub

3

6962487

WASHER

4

6962470

NUT

5

6962557

WHEEL

6

6962545

WASHER

7

6962547

BUSH

8

6962552

BOLT

9

6962455

SEAL RING

10

6962471

BEARING

11

6962355

O-RING

12

6962541

LOCK RING

13

6962546

WASHER

14

6962348

RING

15

6962347

RING

16

6962539

GEAR

17

6962354

BEARING

18

6962469

WASHER

19

6962459

PLANETARY assy - Ref. 24,25,26

20

6962538

PLUG

21

6962534

WASHER

22

6962540

GEAR

23

6962323

BOLT

24

HOUSING NLA - Qty valid only for (1) wheel hub

25

SHAFT NLA

26

WASHER NLA
