Запчасти Bobcat BL370 HEAD COVER (Tier II) (S/N 5732 11001 & Above) POWER UNIT

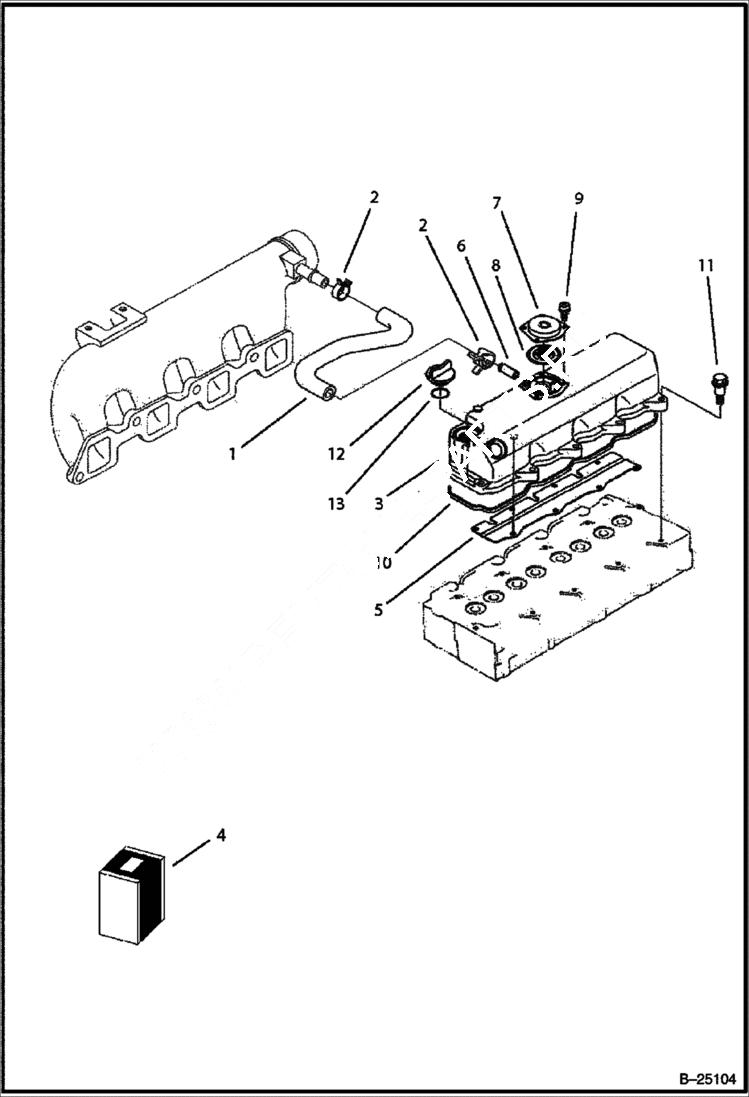

Схема запчастей Bobcat BL370 - HEAD COVER (Tier II) (S/N 5732 11001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

6685524

TUBE, BREATHER

2

3974679

BAND

3

COVER NLA - Cylinder Head

4

6685085

COVER W/Ref. 3, 5-9

5

SHIELD NLA - breather - Order Ref. 3 - Was 6684779 - A

6

6653880

PIPE, WATER RETURN

7

6969803

COVER, BREATHER

8

6685087

VALVE

9

3975436

SCREW W/washer - A

10

6684780

GASKET

11

6684781

BOLT

12

6685924

CAP oil filler - Was 6652653 - A

Выбрано товаров: 12
