Запчасти Bobcat BL370 INJECTION PUMP (Tier II) (S/N 5732 11001 & Above) POWER UNIT

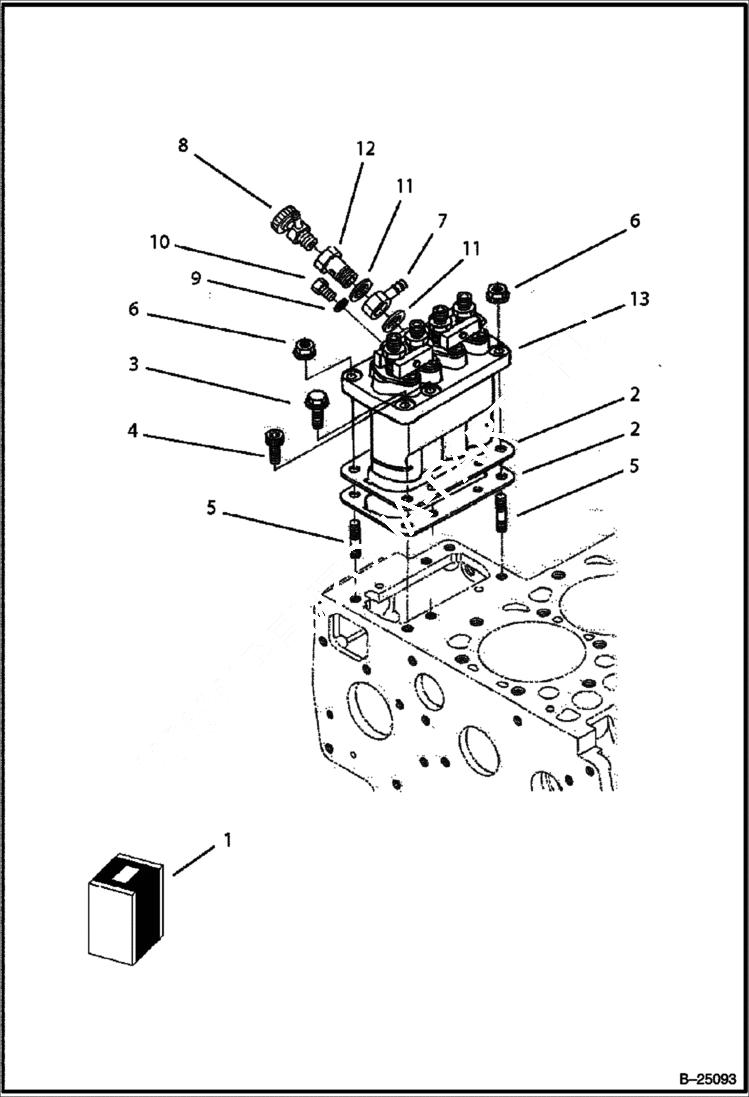

Схема запчастей Bobcat BL370 - INJECTION PUMP (Tier II) (S/N 5732 11001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

6685511

PUMP W/Ref. 9-13

2

3974626

SHIM 0,20 mm - injection pump

2

6682515

SHIM 0,25 mm - injection pump

2

6655210

SHIM 0,30 mm - injection pump

2

6684829

SHIM 0,35 mm - injection pump

3

6680801

BOLT

4

6684830

BOLT

5

6652670

STUD

6

6969819

NUT, FLANGE

7

6513707

JOINT

8

6598102

VALVE jet start

9

6698120

GASKET Was 3974403 - A

10

6599084

SCREW Was 6969820 - A

11

6685471

GASKET

12

6685473

BOLT, EYE 12MM

13

PUMP NLA - injection

Выбрано товаров: 16
