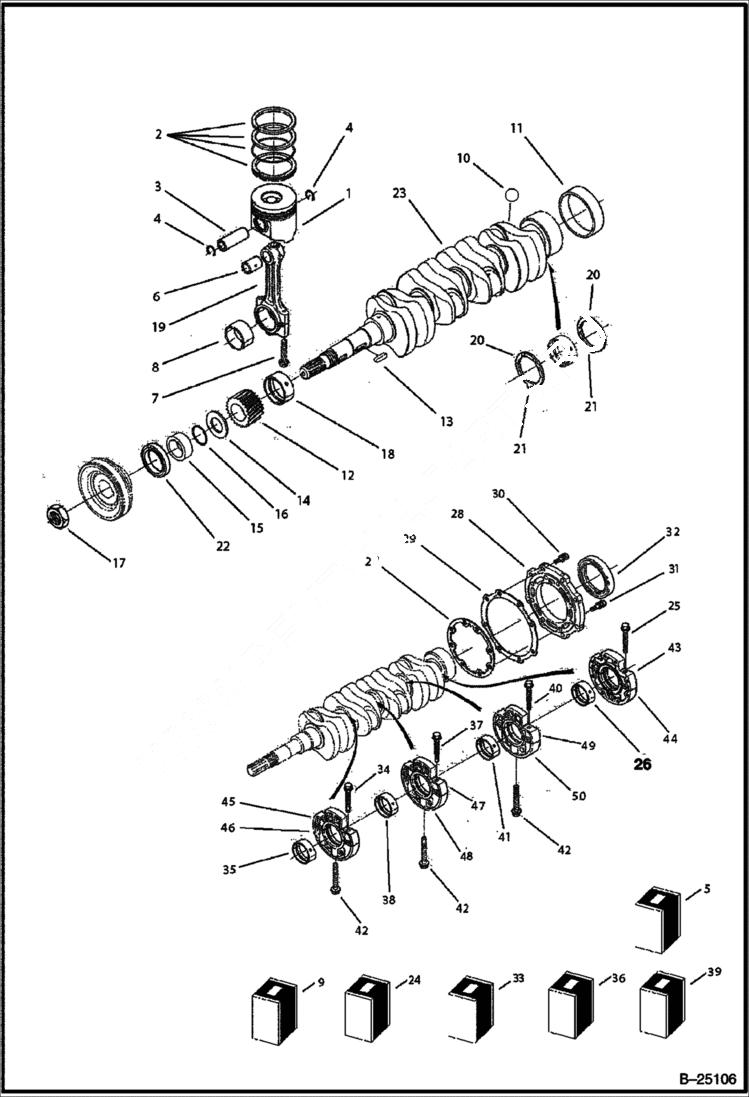

Запчасти Bobcat BL370 PISTON & CRANKSHAFT Tier II 5732 11001 & Above POWER UNIT

1

PISTON NLA - Std. (05) (1G796-21110) - Was 6685505 - A

1

PISTON NLA - Order 6693920 piston and 6686997 cir-clip - +.25 (05) (1G796-21900) - Was 6685508 - A

1

PISTON NLA - std - Was 6685506 - A

1

PISTON +.25 (00) (1G796-21910) NLA - +.25 (00) (1G796-21910) - Order 6691171 & (2) 6686997 - Was 6685509 - A

1

PISTON NLA - Std. (10) (1G796-21130) - Order 6690913 piston & (2) 6686997 cir-clip - Was 6685507 - A

1

6685510

PISTON +.25 mm (10) (1G796-2113 OS25)

2

6685095

RING, PISTON std

2

6685096

PISTON RING +0,25mm

3

6655179

PIN, PISTON ENG

4

6686997

CIR-CLIP Was 6969813 - A

5

6655181

ROD, CONNECTING W.Ref. 6-8,19

6

6969814

BUSH, PISTON PIN

7

BOLT NLA - Order 2 of 7020998 bolt and be advised of different torque specs

8

7015270

BEARING, ENG ROD CONNECTING rod - std. - Was 6655183 - A

8

6655236

BEARING rod (-0,20 mm)

8

6655237

BEARING rod (-0,40 mm)

9

6684806

CRANKSHAFT W/Ref. 10,11,23

10

6652633

BALL 1/4''

11

6653859

SLEEVE

12

6685481

GEAR

13

6685469

KEY

14

6653861

SLINGER, OIL

15

3975337

COLLAR

16

3974577

O RING

17

3974671

NUT

18

7015264

BEARING, ENG CRANKSHAFT main - Std. - Was 6685486 - A

18

6685490

BEARING -0,20mm

18

6685491

BEARING -0,40mmq

19

ROD NLA

20

7015266

WASHER, THRUST +0,020mm - Was 6685488 - A

20

6685495

WASHER +0,40mm

21

7015267

WASHER, THRUST std - Was 6685489 - A

22

6685496

WASHER

23

CRANKSHAFT NLA

24

6689503

CASE MAIN BRG W/Ref 2,3,20 & 21 - Was 6969806 - A

25

6685482

BOLT

26

7015265

BEARING, ENG CRANKSHAFT std set - Was 6685487 - A

26

6685492

BEARING -0,20mm

26

6685493

BEARING -0,40mm

27

6684788

GASKET Was 6655165 - A

28

6655166

COVER

29

6666814

GASKET

30

1CM825

BOLT Was 4CM825 - A

31

6969808

BOLT

32

6684789

SEAL

33

6685483

CASE, MAIN BRG. W/Ref 11,12,22 & 23 - Was 6969809 - A

34

6685482

BOLT

35

7015265

BEARING, ENG CRANKSHAFT std set - Was 6685487 - A

35

6685492

BEARING -0,20mm

35

6685493

BEARING -0,40mm

36

6685484

CASE, MAIN BRG. W/Ref 4,15,24 & 25 - Was 6969810 - A

37

6685482

BOLT

38

7015265

BEARING, ENG CRANKSHAFT std set - Was 6685487 - A

38

6685492

BEARING -0,20mm

38

6685493

BEARING -0,40mm

39

6685485

CASE W/Ref 17,18,26 & 27 - Was 6969811 - A

40

6685482

BOLT

41

7015265

BEARING, ENG CRANKSHAFT std set - Was 6685487 - A

41

6685492

BEARING -0,20mm

41

6685493

BEARING -0,40mm

42

6653821

BOLT

43

CASE NLA - wheel bearing

44

CASE NLA - wheel bearing

45

CASE NLA - main bearing

46

CASE NLA - main bearing

47

CASE NLA - main bearing

48

CASE NLA - main bearing

49

CASE NLA - main bearing

50

CASE NLA - main bearing
