Запчасти Bobcat BL370 COOLER ASSY (Tier II) (S/N 5732 11001 & Above) POWER UNIT

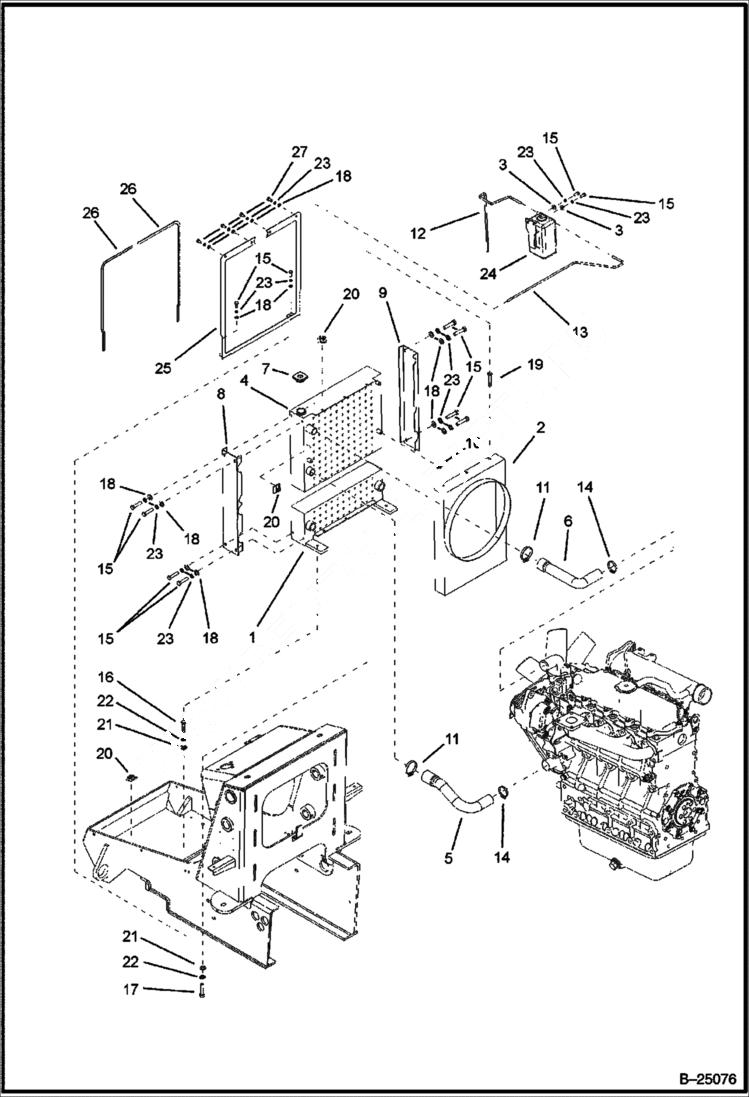

Схема запчастей Bobcat BL370 - COOLER ASSY (Tier II) (S/N 5732 11001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

6961288

COOLER

2

6976963

HOUSING

3

6964631

WASHER

4

6961291

COOLER

5

6961292

HOSE

6

6961293

HOSE

7

6961294

CAP

8

6961295

COVER

9

6961296

COVER

10

6961297

VALVE

11

6960958

CLIP

12

6974815

PIPE

13

6974814

PIPE

14

6960957

CLIP

15

10CM820

BOLT

16

1CM1030

BOLT Was 4CM1030 - A

17

1CM1035

BOLT

18

15EM80

WASHER

19

6961582

BOLT

20

6960988

HOOK

21

6968475

WASHER

22

8EM100

WASHER

23

8EM80

WASHER

24

6974428

TANK

25

6968906

COVER

26

6974852

GASKET

27

10CM815

BOLT

Выбрано товаров: 27
