Запчасти Bobcat BL370 CRANKCASE Tier II 5732 11001 & Above POWER UNIT

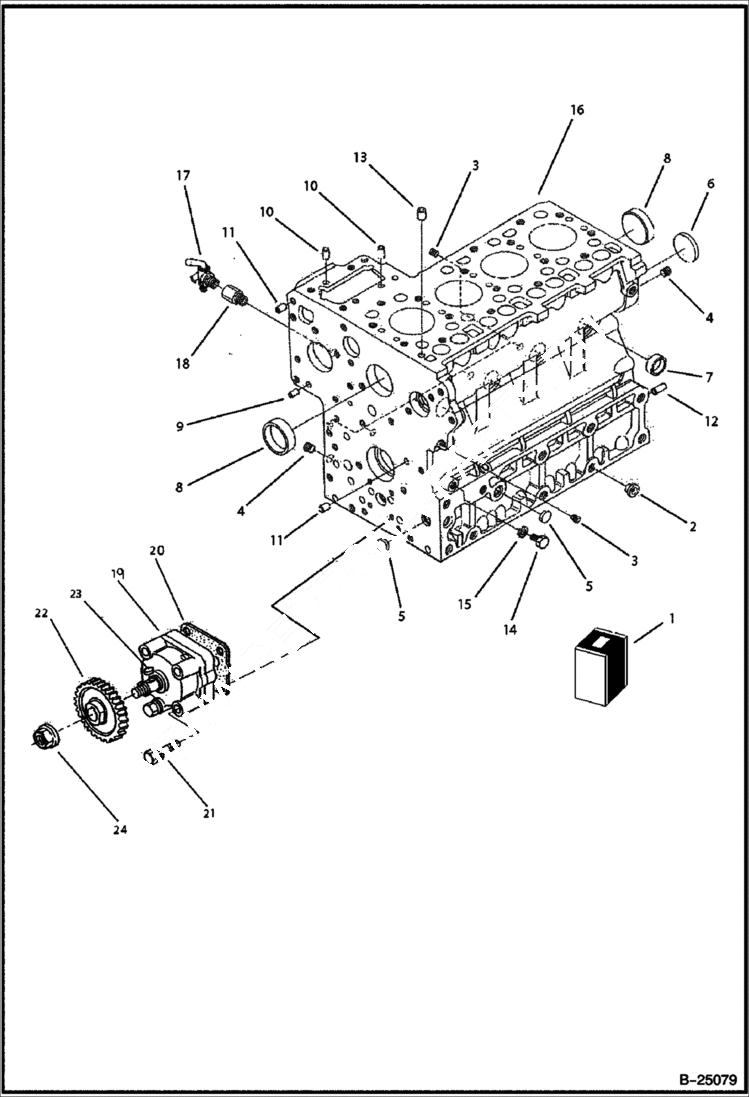

Схема запчастей Bobcat BL370 - CRANKCASE Tier II 5732 11001 & Above POWER UNIT

Артикул

Название

Примечание

Количество

1

6969795

COMP. CRANKCASE W/Ref. 2-13, 16

2

6598187

PLUG

3

6652574

PLUG

4

6652575

PLUG

5

6667418

PLUG

6

6657663

PLUG

7

3974389

CAP, SEALING

8

3974390

PLUG

9

3974393

PIN straight

10

3974394

PIN

11

3974395

PIN

12

3974868

PIN

13

3974037

PIN

14

7022679

PLUG Was 6683104 - A

15

3974095

MET-GASK

16

CRANKCASE NLA

17

6672190

DRAINCOCK

18

3974871

CONNECTOR

19

6689441

PUMP, OIL ENG Was 3975426 - A

20

6666782

GASKET

21

6670770

BOLT

22

3975441

GEAR, CAMSHAFT

23

6969805

KEY,FEATHER

24

6653888

NUT

Выбрано товаров: 24
