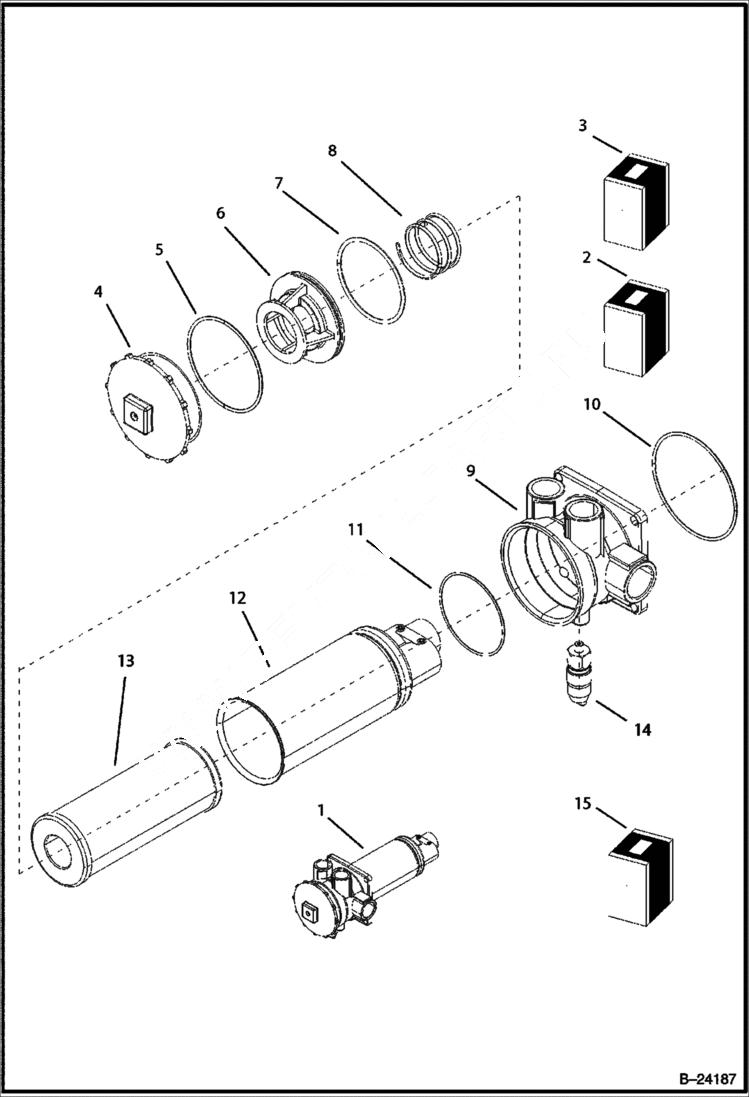

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Filter) HYDRAULIC SYSTEM

1

6961811

FILTER Ref. 2,3

2

6969413

COVER Ref. 4,5

3

6969414

HOLDER Ref. 6,7,8

4

COVER NLA

5

O-RING NLA

6

HOLDER NLA

7

O-RING NLA

8

SPRING NLA

9

HOUSING NLA

10

O-RING NLA

11

O-RING NLA

12

6969415

HOUSING

13

6967226

INSERT

14

6967207

SENSOR

15

6967227

HOUSING Ref. 2, 4, 10, 11
