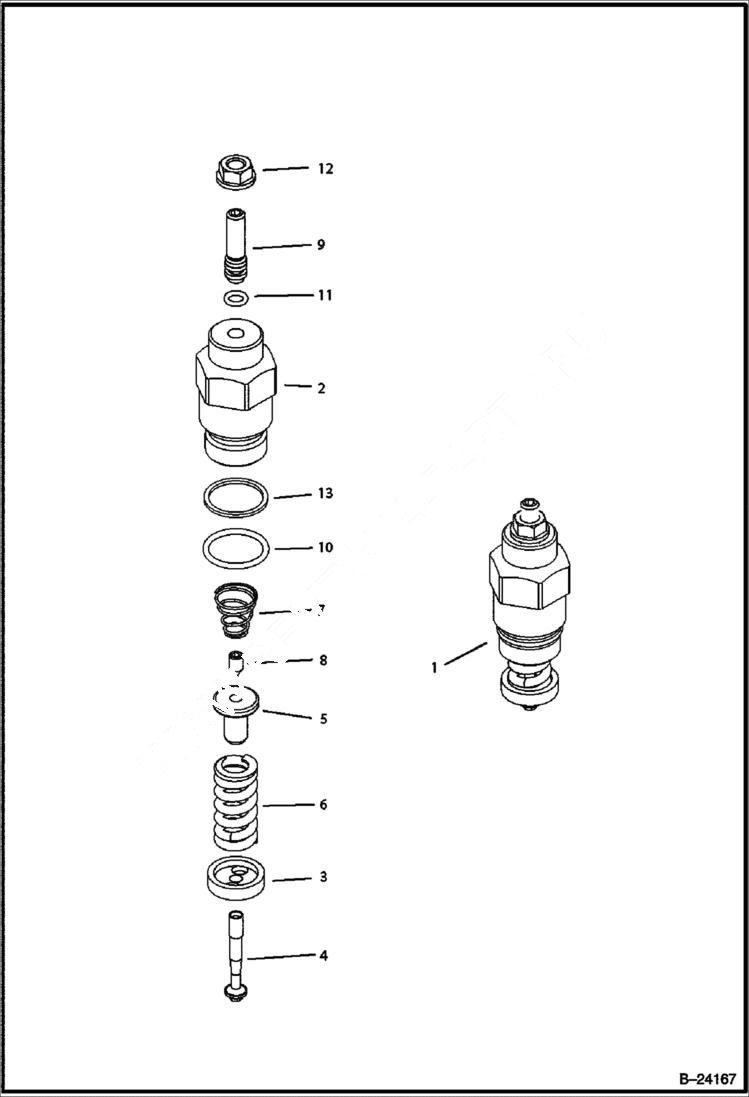

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Axial Pump) HYDRAULIC SYSTEM

1

6967509

VALVE Ref. 2-13

2

6967521

SCREW

3

COLLAR NLA - Was 6967522 - A

4

6967523

SPINDLE

5

6967524

NUT

6

6967525

SPRING

7

6967526

SPRING

8

6967527

PIN

9

6967528

BOLT

10

6682929

O-RING Was 6967529 - A

11

6682913

O-RING Was 6967530 - A

12

6685404

NUT Was 6967531 - A

13

6682930

O-RING Was 6967532 - A
