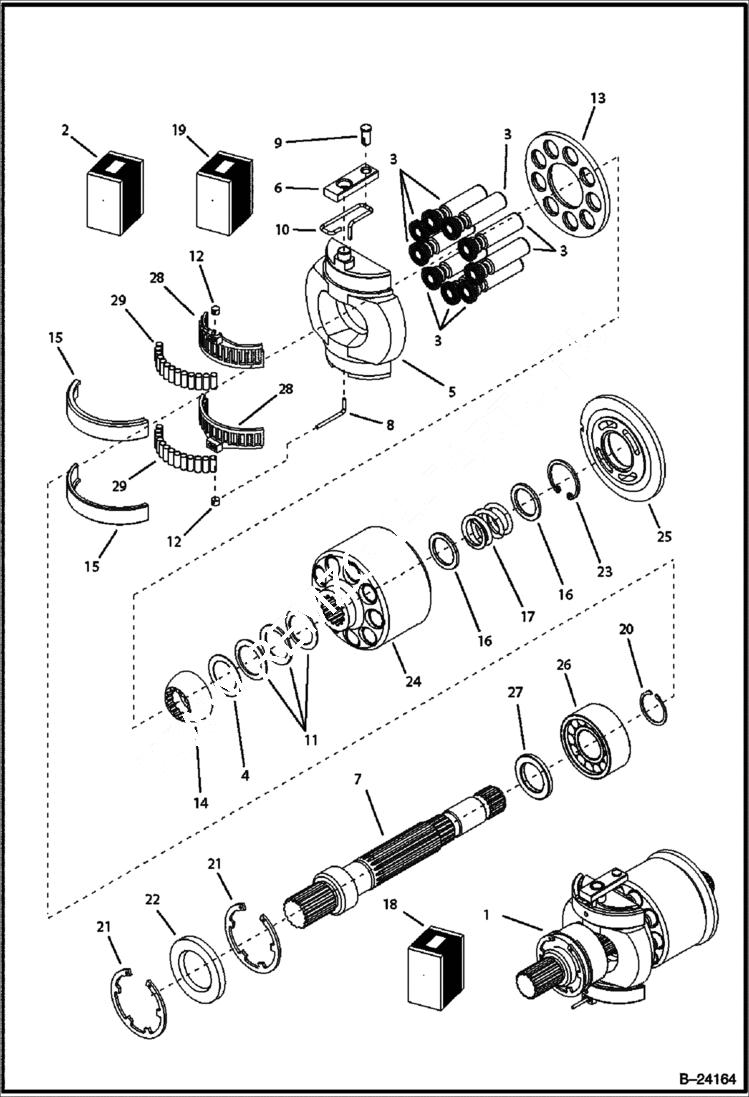

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Axial Pump) HYDRAULIC SYSTEM

1

6967408

KIT Ref. 2-23

2

6967423

KIT Ref. 24,25

3

6967424

PISTON

4

6967586

SHIM Was 6967591 - A

5

6967426

CRADLE

6

6967427

SLIDE

7

6967428

SHAFT

8

6671772

WIRE Was 6967429 - A

9

6967430

PIN

10

6671775

WIRE Was 6967431 - A

11

6967586

SHIM KIT SHIM

12

6967436

ROLLER

13

6967437

PLATE

14

6967438

BALL

15

6671770

RACE Was 6967439 - A

16

6967440

WASHER

17

6967441

SPRING

18

6682890

BEARING Ref. 26,27 - Was 6967442 - A

19

6967443

BEARING (SET) Ref. 28,29

20

6682892

RING Was 6967444 - A

21

6682893

RING Was 6967445 - A

22

6967446

SEAL

23

6967447

RING

24

DRUM NLA

25

PLATE NLA

26

BEARING NLA

27

RING NLA

28

CAGE NLA

29

ROLLER NLA
