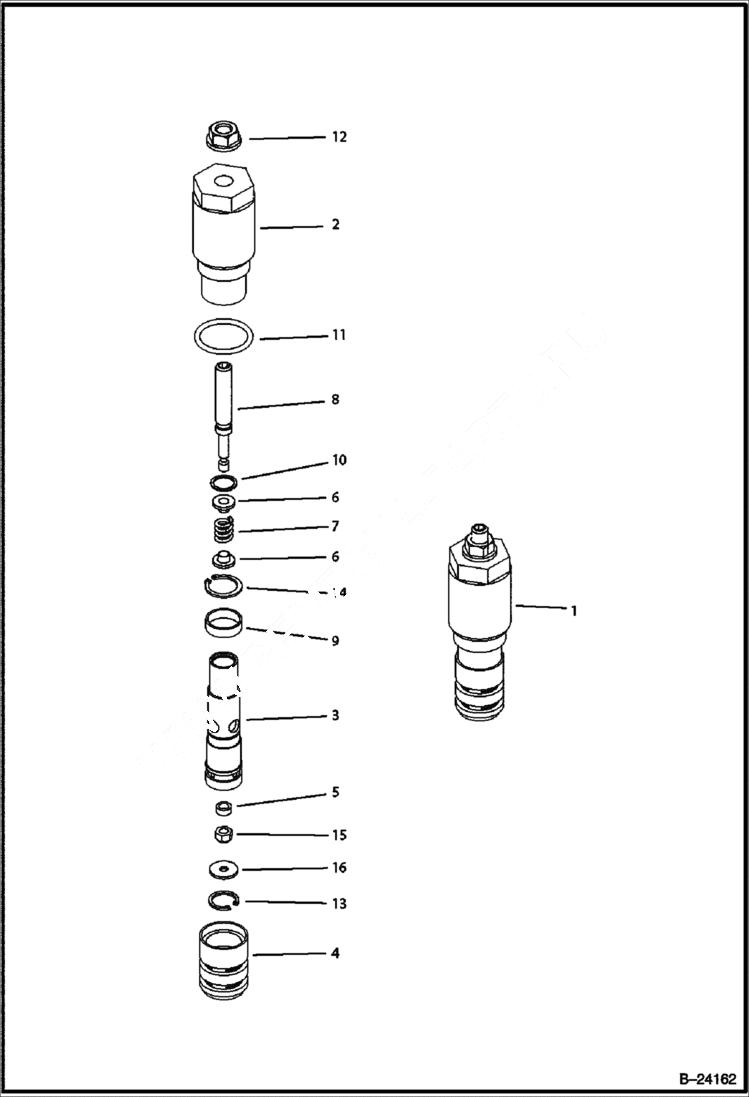

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Axial Pump) HYDRAULIC SYSTEM

1

6678723

DA CARTRIDGE Ref. 2-16 - Was 6967553 - A

2

SCREW NLA - Order 6967569 - Was 6967569 - A

3

PISTON NLA - Order 6678723 - Was 6967570 - A

4

PIPE NLA - Order 6678723 - Was 6967571 - A

5

6967572

WASHER

6

COLLAR NLA - Was 6967573 - A

7

6967574

SPRING

8

6967575

PIN

9

RING NLA - Order6678723 - Was 6967576 - A

10

6967577

RING

11

6682929

O-RING Was 6967529 - A

12

6685404

NUT Was 6967531 - A

13

6967578

RING

14

6967579

RING

15

6967580

NUT

16

WASHER NLA
