HYDRAULIC CIRCUITRY (Frame)

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Frame) HYDRAULIC SYSTEM

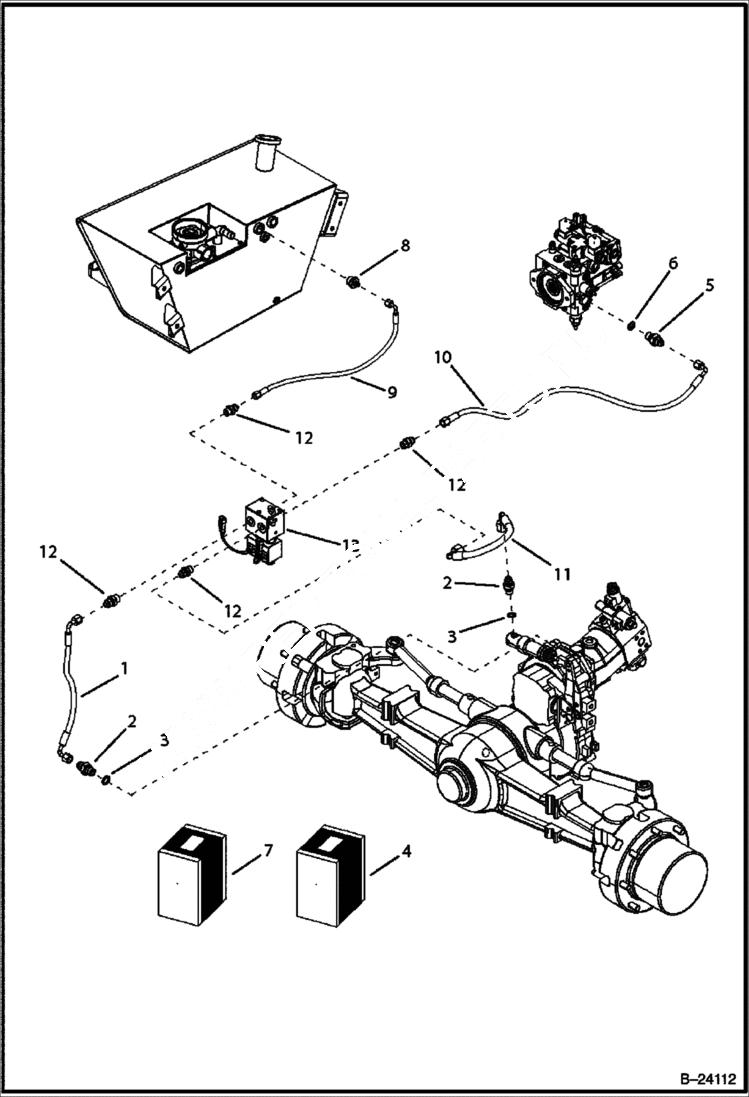

Схема запчастей Bobcat BL370 - HYDRAULIC CIRCUITRY (Frame) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6966690

HOSE

2

FITTING NLA

3

6969372

SEAL

4

6966817

FITTING Ref. 2, 3

5

FITTING NLA

6

6969379

SEAL

7

6974628

FITTING Ref. 5, 6

8

6966819

FITTING

9

6966709

HOSE

10

6966712

HOSE

11

6966695

HOSE

12

15KB0606

FITTING, HYD CONNECTOR

13

6966820

VALVE
