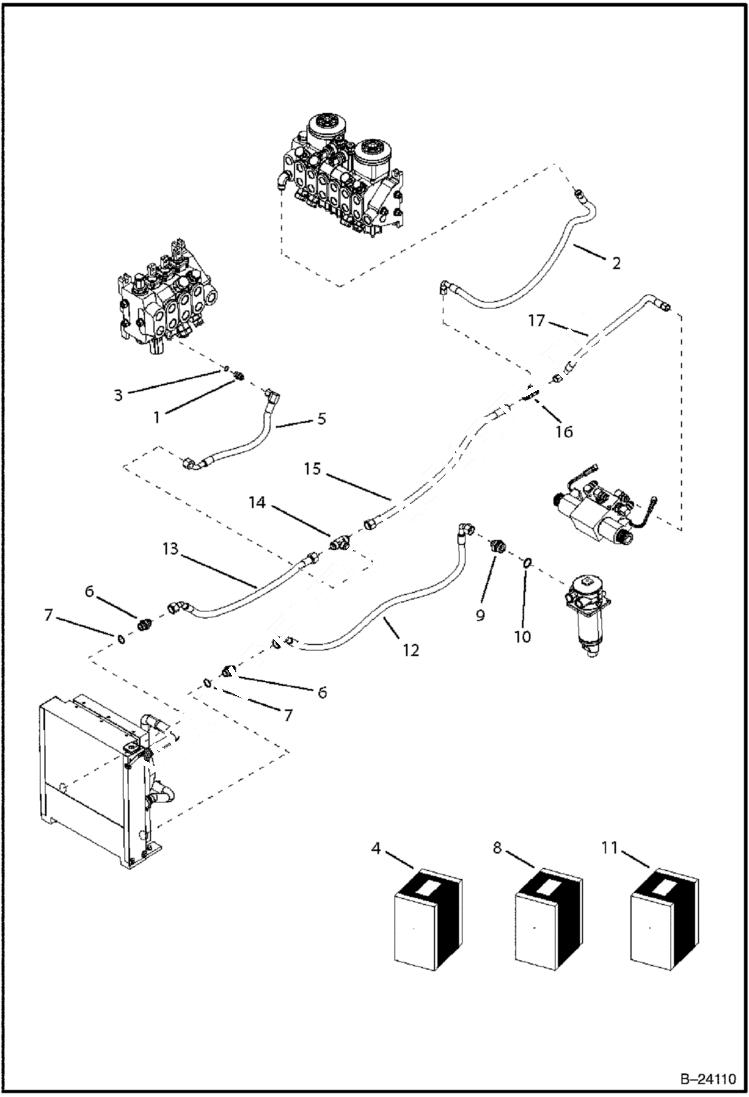

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Frame) HYDRAULIC SYSTEM

1

FITTING NLA

2

6966739

HOSE

3

6969371

SEAL

4

6966825

FITTING Ref. 1, 2, 3

5

6966742

HOSE

6

FITTING NLA

7

6969374

SEAL

8

6966814

FITTING Ref. 6, 7

9

FITTING NLA

10

6969381

SEAL

11

6966824

FITTING Ref. 9, 10

12

6966132

HOSE

13

6966744

HOSE

14

6966826

FITTING

15

6966743

HOSE

16

6966083

FITTING

17

6966740

HOSE
