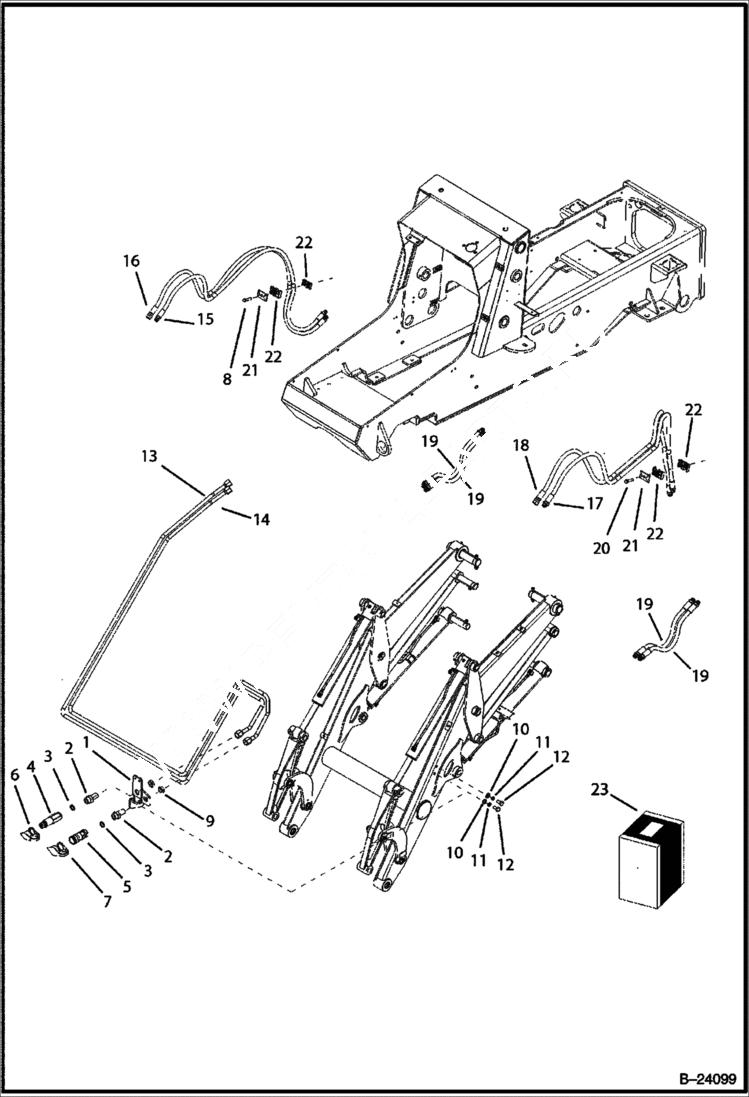

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Loading Arms) HYDRAULIC SYSTEM

1

6966827

HOLDER

2

FITTING NLA

3

79K12

O RING 10

4

6674688

COUPLER, FF MALE straight

5

6672960

COUPLER, FF FEMALE straight

6

6960671

COVER male

7

6960672

COVER female

8

1CM845

BOLT

9

86F7

LOCK NUT

10

6962819

WASHER

11

8EM80

WASHER

12

1CM816

BOLT

13

6966829

PIPE

14

6966828

PIPE

15

6966143

HOSE

16

6966144

HOSE

17

6974611

HOSE

18

6974612

HOSE

19

6966140

HOSE

20

1CM835

BOLT

21

6960755

PLATE

22

6961934

CLAMP sale as couple

23

6711625

FITTING Ref. 2, 3
