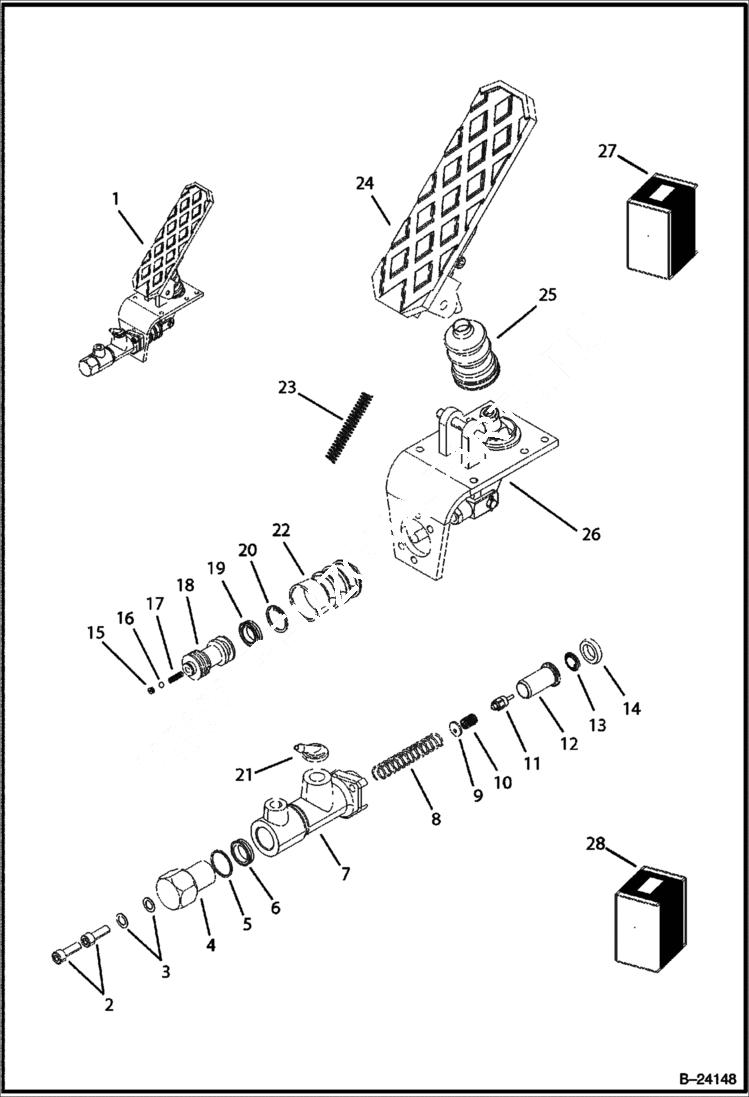

Запчасти Bobcat BL370 MAIN BRAKE Pedal CANOPY

1

6961508

PEDAL Ref. 2-26

2

1GM825

BOLT

3

1EM80

WASHER Was 2EM8 - A

4

PLUG NLA

5

SEAL NLA

6

SEAL NLA

7

HOUSING NLA

8

SPRING NLA

9

WASHER NLA

10

SPRING NLA

11

VALVE NLA

12

BODY NLA

13

SPRING NLA

14

SEAL NLA

15

SPRING NLA

16

SEAL NLA

17

BALL NLA

18

BODY NLA

19

SEAL NLA

20

7JM28

RING

21

PLUG NLA

22

6969539

RUBBER

23

6969540

SPRING

24

PEDAL NLA

25

6969541

RUBBER

26

PLATE NLA

27

6969542

BRAKE CYLINDER W/Ref. 4-21

28

6969543

SEAL KIT W/Ref. 5,6,14,16,17 & 19
