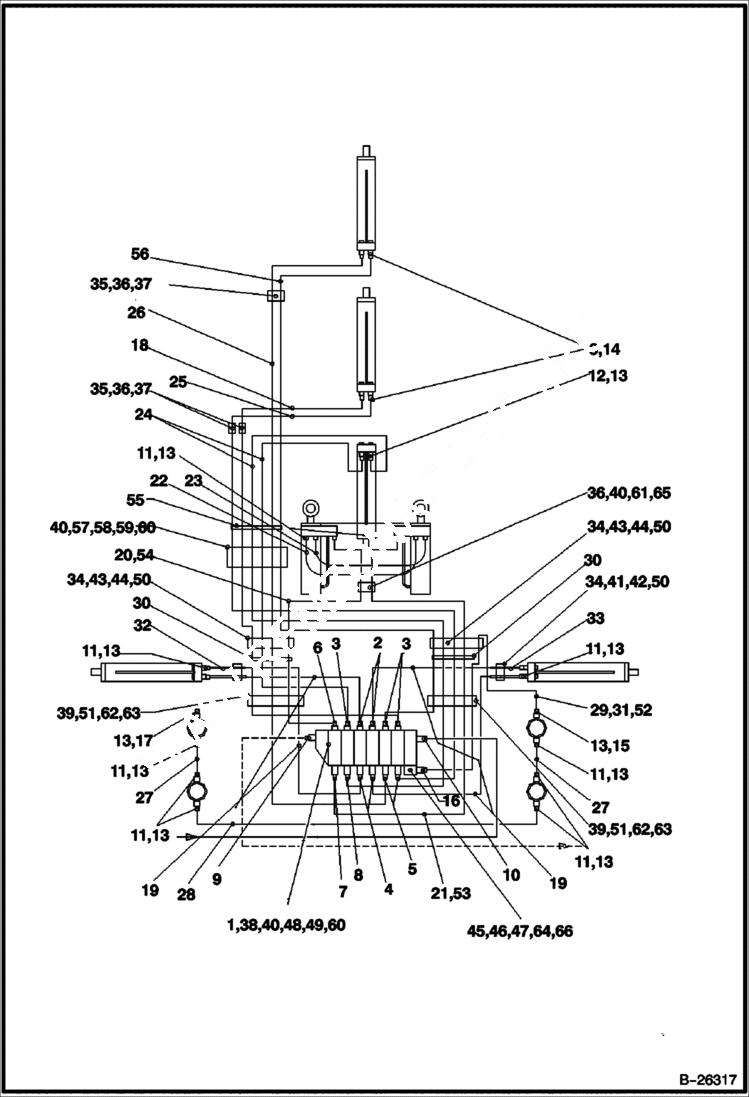

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY Backhoe HYDRAULIC SYSTEM

1

6962230

REAR DISTRIBUTOR 26444 SIDESHIFT control

2

6960720

FITTING

3

6960733

FITTING

4

6960735

FITTING

5

6960732

FITTING

6

6960737

FITTING

7

6960736

FITTING

8

6961013

FITTING

9

6961745

FITTING

10

6960654

FITTING

11

6960704

FITTING

12

6960703

FITTING

13

6962101

SEAL

14

6962096

RING

15

6975280

FITTING G3/8''//M16X1.5

16

6960790

FITTING

17

6961091

PLUG

18

6964274

HOSE

19

6962151

HOSE

20

6962152

HOSE

21

6962153

HOSE

22

6962154

HOSE

23

6962155

HOSE

24

6964132

HOSE DN10/3520

25

6961131

HOSE

26

6964122

HOSE DN10/4500

27

6962413

HOSE

28

6962693

HOSE DN8/310

29

6962429

HOSE

30

6975281

PROTECTIVE HOSE L 810MM

31

6975282

PROTECTIVE HOSE L 810MM

32

6962044

STABILLIZER SUPPORT LEFT

33

6961872

STABILIZER SUPPORT

34

4CM850

BOLT

35

6960756

HOLDER

36

6960755

PLATE top

37

1CM835

BOLT

38

1CM830

BOLT

39

1CM1060

BOLT

40

16DM8

NUT

41

6961093

HOLDER tube

42

6961094

HOLDER tube

43

6961095

PLATE

44

6961096

CLAMP

45

6961092

LEVER

46

6961930

WASHER

47

6964622

WASHER

48

6960738

CONTROL VALVE

49

6960754

KNOB

50

8EM80

WASHER

51

8EM100

WASHER

52

6975283

PROTECTIVE HOSE P3 240MM

53

6975284

PROTECTIVE HOSE P3 400MM

54

6975285

PROTECTIVE HOSE P3 450MM

55

6961131

HOSE

56

6964127

HOSE DN10/4380

57

6961132

HOLDER hose

58

6961133

PLATE

59

1CM880

BOLT

60

6962819

WASHER

61

6960890

HOLDER

62

6975286

HOLDER OF HOSES

63

6966914

HARNESS

64

13GM4010

BOLT

65

6975287

BOLT

66

6968478

WASHER
