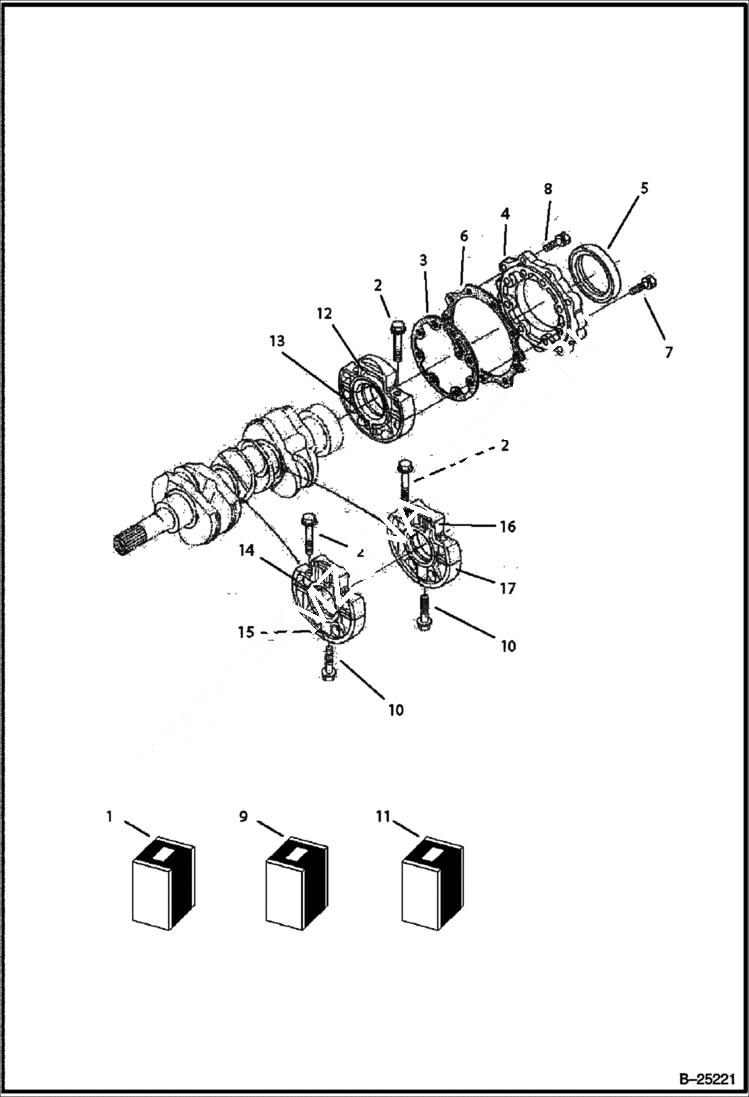

Запчасти Bobcat BL275 MAIN BEARING CASE Tier II 5730 11001 & Above POWER UNIT

1

6657616

MAIN BRG W/Ref. 12,13

2

6657482

BOLT

3

6657480

GASKET

4

6657484

COVER

5

6657481

SEAL

6

6657485

GASKET

7

6969895

BOLT

8

6653584

BOLT

9

6680491

CASE W/Ref. 16, 17

10

6657483

BOLT

11

6680492

BEARING ASSY W/Ref. 18, 19

12

CASE NLA

13

CASE NLA

14

CASE NLA

15

CASE NLA

16

CASE NLA

17

CASE NLA
