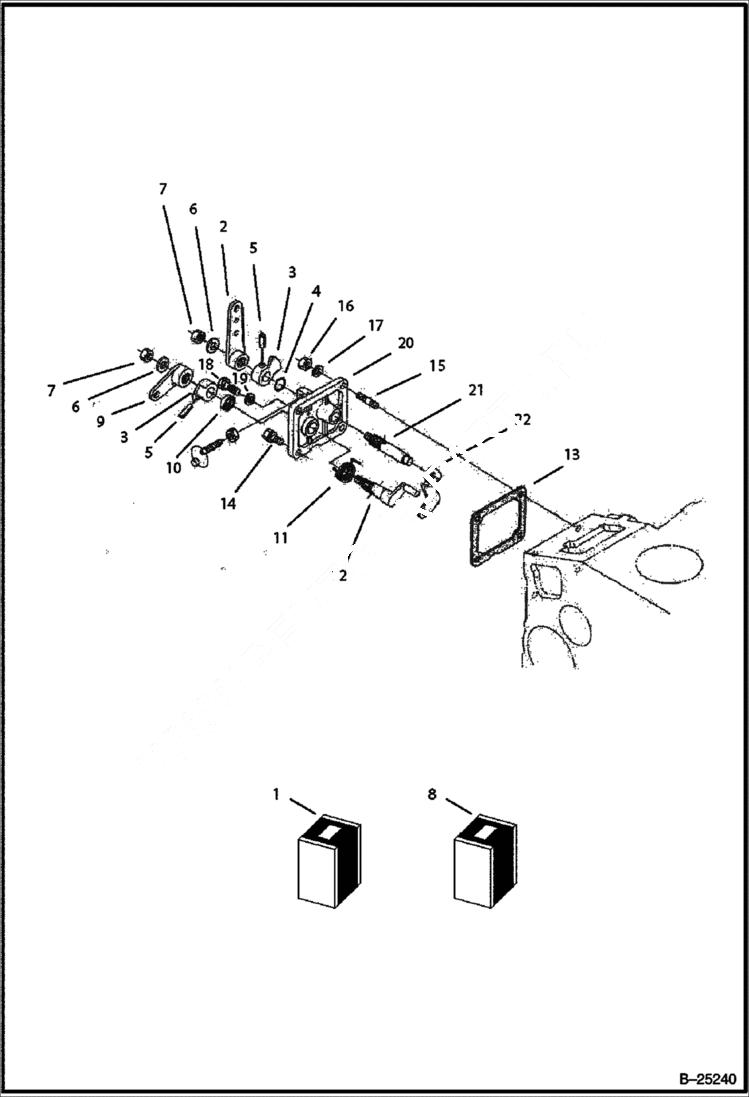

Запчасти Bobcat BL275 SPEED CONTROL PLATE Tier II 5730 11001 & Above POWER UNIT

1

6680501

PLATE ASSY W/Ref. 2-12, 20-22 - A

1

6680276

PLATE ASSY W/Ref. 2-12, 20

2

6657655

LEVER

3

6657577

LEVER

4

6680277

O-RING

5

6598098

PIN

6

6657596

WASHER

7

6657592

NUT

8

6657649

LEVER ASSY W/Ref. 21, 22

9

6657656

LEVER

10

6598703

SEAL

11

6657474

SPRING

12

6657657

SHAFT

13

6657578

GASKET

14

6969826

BOLT

15

6680264

STUD

16

10M6

NUT

17

6667419

WASHER

18

6969909

BOLT

19

3974972

GASKET

20

PLATE NLA

21

SHAFT NLA

22

LEVER NLA
