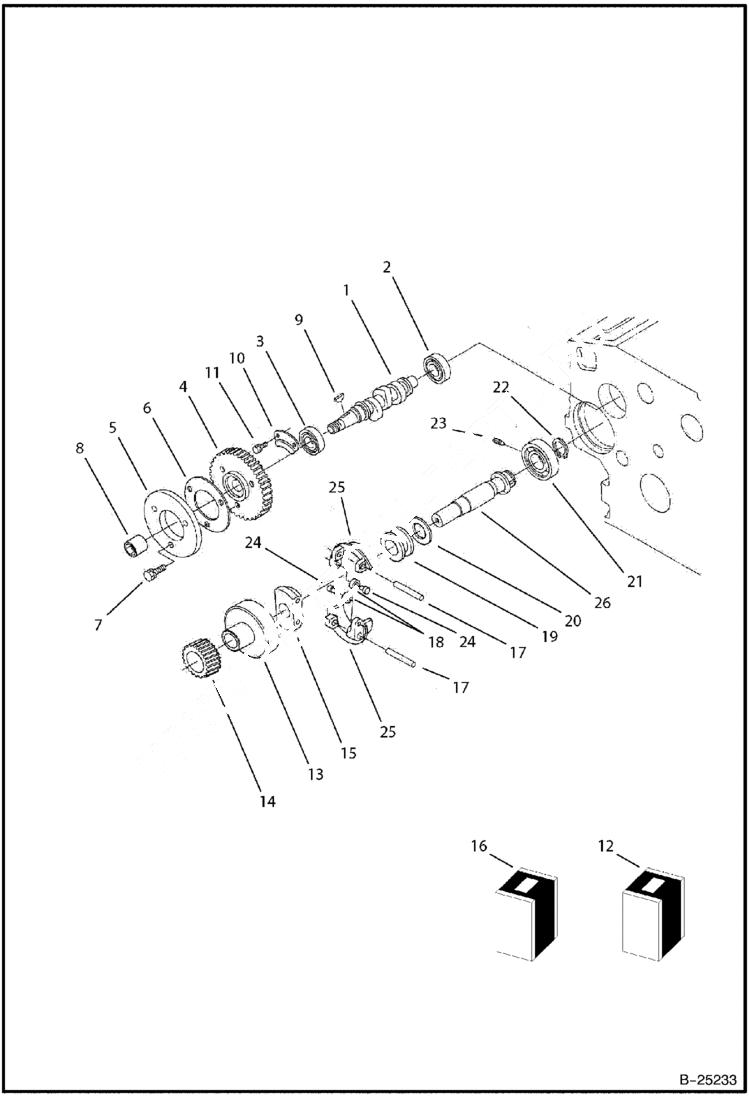

Запчасти Bobcat BL275 FUEL CAMSHAFT & GOVERNOR SHAFT Tier II 5730 11001 & Above POWER UNIT

1

6672379

CAMSHAFT

2

6686175

BEARING

3

6686176

BEARING

4

6657664

GEAR

5

6657558

CAM

6

6672380

WASHER

7

6652580

BOLT

8

6657593

NUT

9

6657597

KEY

10

6657518

STOPPER

11

6969826

BOLT

12

6672381

SHAFT ASSY W/Ref. 13-20, 26

13

6698614

HOLDER, GEAR GOV Was 6657565 - A

14

6657671

GEAR

15

6657564

HOLDER

16

6657562

WEIGHT W/Ref. 24, 25

17

6657563

SHAFT

18

6657690

ROLLER

19

6657566

SLEEVE

20

6657567

WASHER

21

6686178

BEARING

22

6657648

SNAP RING

23

6657568

SET SCREW

24

SHAFT NLA - governor separately

25

GOVERNOR NLA - weigh separately

26

GOVERNOR NLA - weigh separtately
