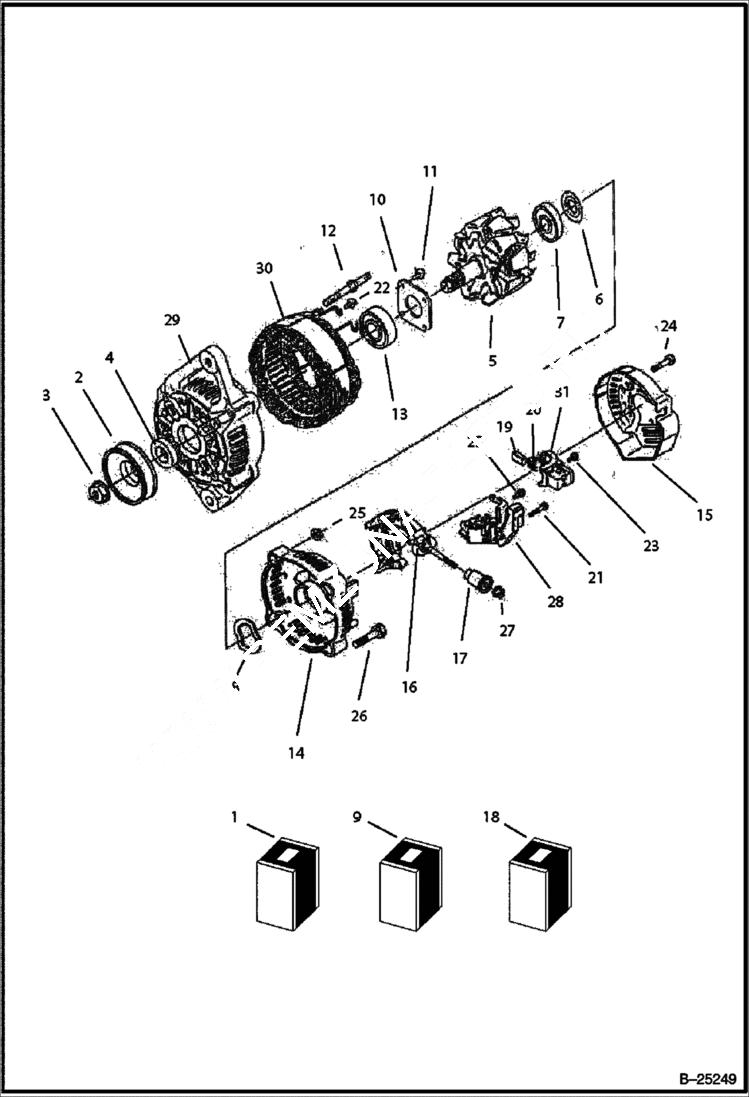

Запчасти Bobcat BL275 ALTERNATOR ELECTRICAL SYSTEM

1

6988709

ALTERNATOR W/Ref. 2-31 - Was 6686227 - A

2

6681708

PULLEY

3

6681709

NUT

4

6681710

COLLAR

5

6681711

ROTOR

6

6681712

COVER, BEARING

7

6969930

BEARING, BALL

8

6681722

WASHER THRUST

9

6969931

ASSY FRAME, DRIVE END W/Ref. 10-13, 29, 30

10

6681724

PLATE, RETAINER

11

6681725

SCREW

12

6681726

BOLT, THROUGH

13

6969932

BEARING, BALL

14

6969933

FRAME, END

15

6969934

COVER, END

16

6969935

ASSY RECTIFIER

17

6683196

BRUSH

18

6969936

HOLDER, BRUSH W/Ref. 19,20,31

19

6681733

BRUSH

20

6681734

SCREW

21

6681735

SCREW

22

6681736

SCREW

23

6681737

SCREW

24

6681738

BOLT

25

6681739

NUT

26

6681740

BOLT

27

6653933

NUT

28

6969937

ASSY REGULATOR

29

FRAME NLA

30

STATOR NLA
