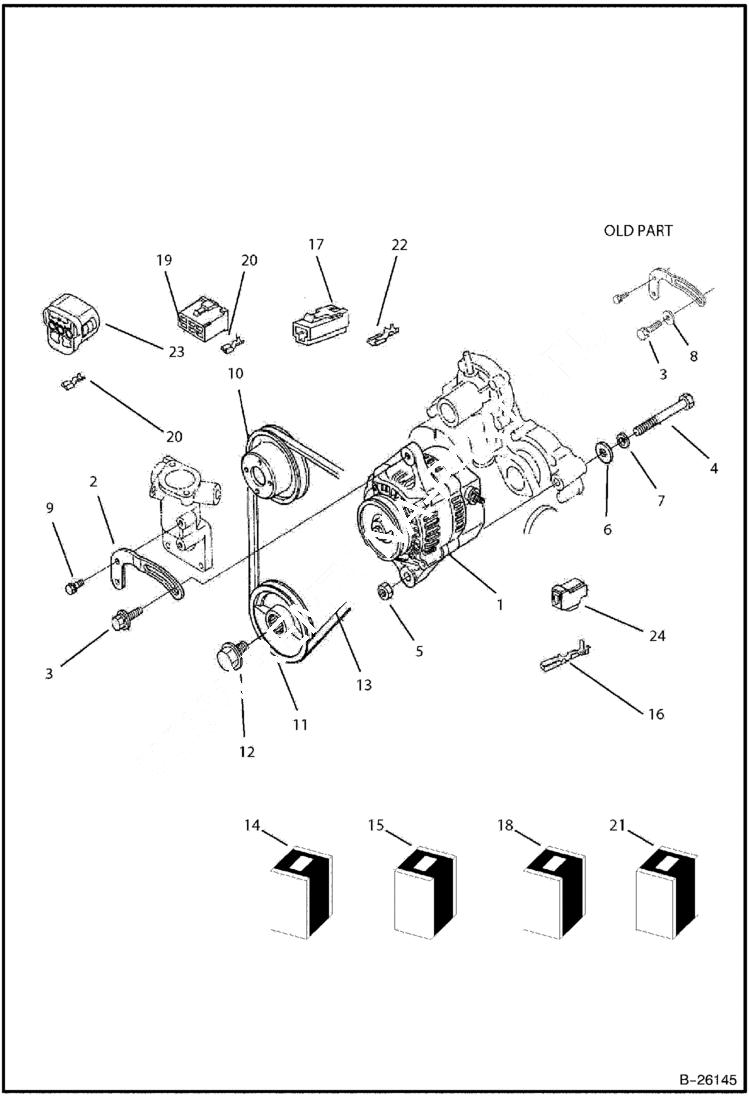

Запчасти Bobcat BL275 ALTERNATOR & PULLEY ELECTRICAL SYSTEM

1

ALTERNATOR Was 6686227 - A

2

6672481

BRACKET

3

6657416

BOLT Was 6969938 - A

3

6969830

BOLT

4

6680535

BOLT

5

27DM10

NUT

6

6680536

WASHER

7

6669192

WASHER

8

6652740

WASHER, PLAIN

9

6969826

BOLT

10

6657585

PULLEY

10

6967362

PULLEY

11

6974732

PULLEY, FAN DRIVE

12

6657588

BOLT

13

6680541

BELT

13

6974733

V BELT

14

6969834

ASSY CONNECTOR,2 W/Ref. 23, 24

15

6969837

CONNECTOR W/Ref. 16, 25

16

6969839

TERMINAL

17

6969928

CONNECTOR

18

6969836

ASSY COUPLER, CONNEC. W/Ref. 19, 20

19

6681701

CONNECTOR

20

6681703

TERMINAL

21

6969584

TERMINAL W/Ref. 17, 22

22

6969929

TERMINAL

23

6969835

CONNECTOR

24

6969838

CONNECTOR
