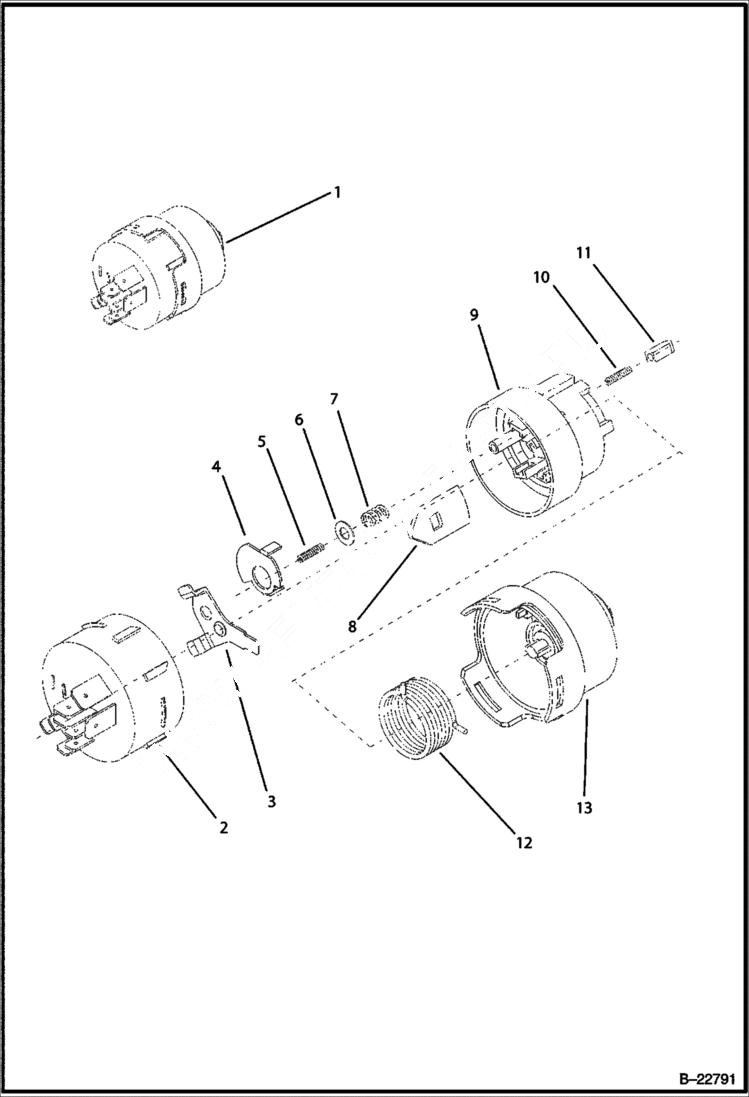

Запчасти Bobcat BL275 IGNITION ELECTRICAL SYSTEM

1

6961636

SWITCHBOX assy. Ref. 2-13 W/Keys

1

6971041

KEY, IGN

2

HOUSING NSS

3

PLATE NSS

4

PLATE NSS

5

SPRING NSS

6

WASHER NSS

7

SPRING NSS

8

PLATE NSS

9

HOUSING NSS

10

SPRING NSS

11

COVER NSS

12

SPRING NSS

13

HOUSING NSS - E6-30-002 key
