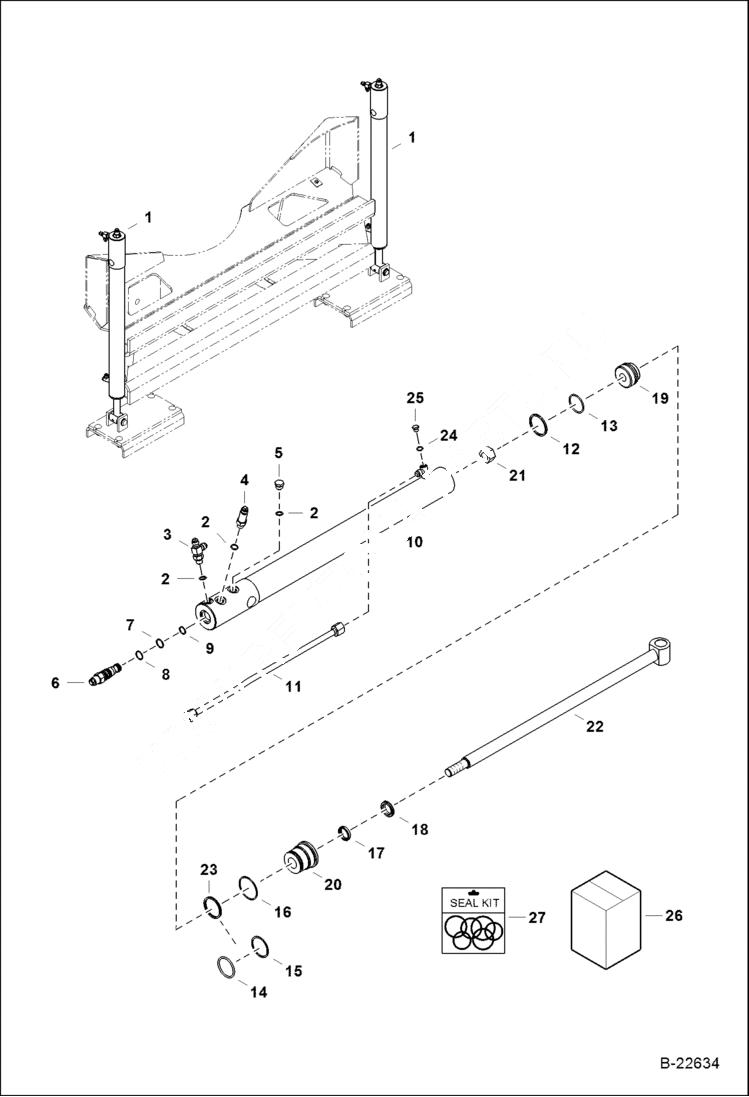

Запчасти Bobcat BL275 VERTICAL STABILIZER CYLINDER Side Shift Backhoe HYDRAULIC SYSTEM

1

6589844

CYLINDER w/Ref, 2 - 5, 10 - 22, 25, 2

2

75K6

O-RING

3

6814409

TEE

4

6814410

FITTING

5

6812171

PLUG

6

VALVE NSS

7

O-RING NSS

8

O-RING NSS

9

O-RING NSS

10

6595002

TUBE

11

6589968

TUBELINE

12

6516231

SEAL

13

54K30118

O-RING

14

54K40124

O-RING

15

73K224

RING

16

82K136

O-RING Was 58K136 - B

17

6667323

SEAL

18

6666542

SEAL, WIPER ROD

19

6504931

PISTON

20

6538595

HEAD, CYL HYD

21

92D12

NUT

22

6532231

ROD

23

7008781

SEAL, QUAD

24

75K3

O-RING

25

6812170

PLUG W/Ref. 26

26

6665481

VALVE w/Ref. 6 - 9

27

7137771

SEAL KIT Ref. 12, 13, 16-18, 21, & 23 - Was 6803472 - A
