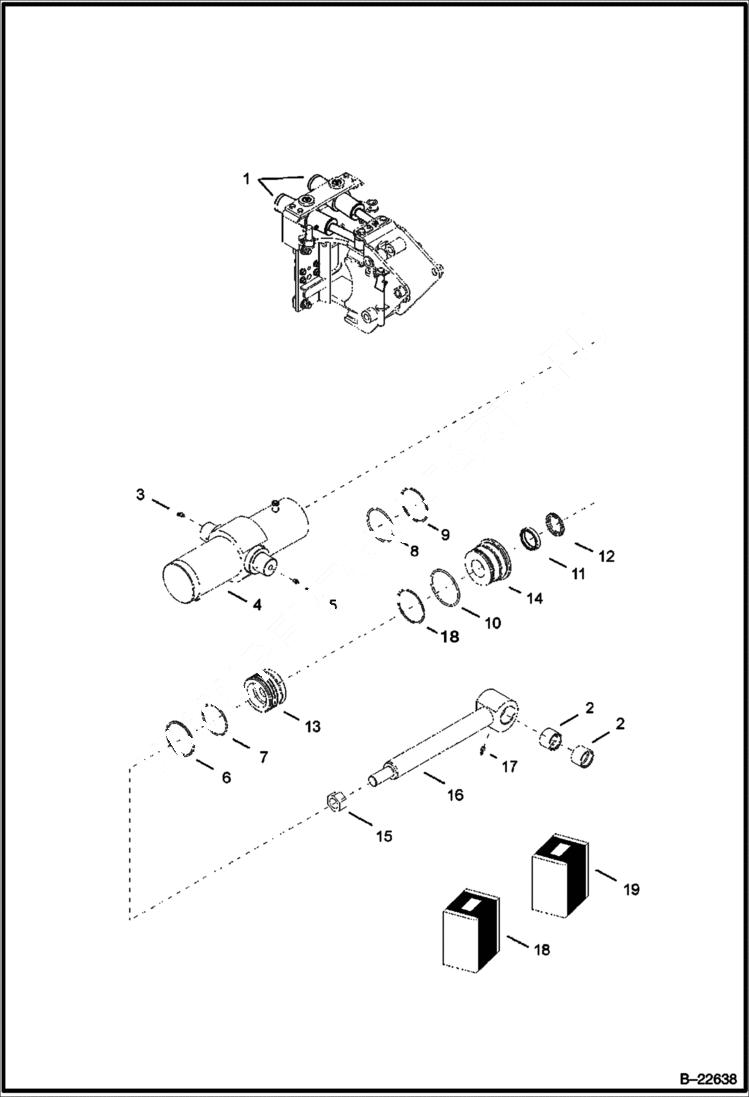

Запчасти Bobcat BL275 SWING CYLINDER Side Shift Backhoe HYDRAULIC SYSTEM

1

6538365

CYLINDER W/Ref. 4, 6 - 15

2

6651449

BEARING

3

12H15

FITTING, GREASE 5 Grease

4

6589652

TUBE

5

10H25

FITTING, GREASE 5 Grease

6

947088

RING, BACK-UP

7

25K30218

O RING 10 Was 54K30218 - B

8

25K40224

O RING 10 Was 54K40224 - B

9

73K232

RING, BACK-UP back-up - Was 80K232 - A

10

58K234

O RING 10 Was 54K40300 - B

11

6667326

SEAL

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

7104247

PISTON

14

6538367

HEAD, CYL TILT

15

92D14

NUT

16

7104246

CYLINDER

17

11H15

GREASE FITTING Grease

18

7008355

SEAL, QUAD

19

6588076

SEAL KIT W/Ref . 2, 16
