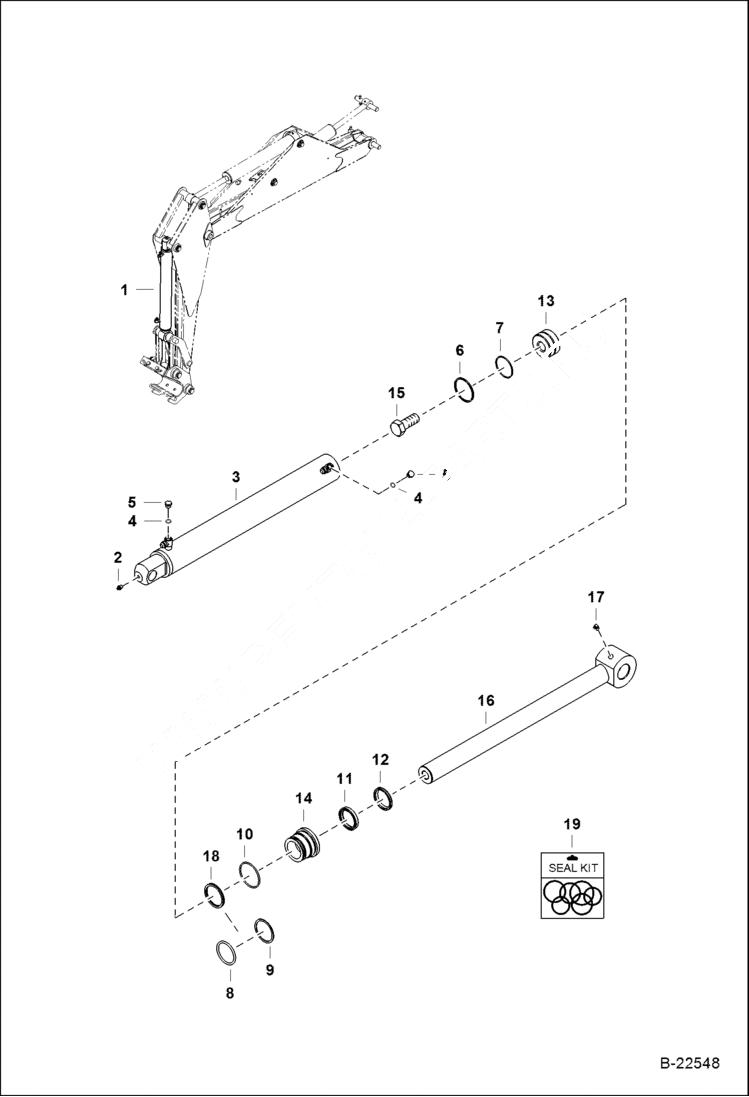

Запчасти Bobcat BL275 BUCKET CYLINDER Side Shift Backhoe HYDRAULIC SYSTEM

1

7146697

CYLINDER ASSY W/Ref. 2-17 - Was 6532556 - A

2

10H25

FITTING, GREASE 5 Grease

3

6534687

CASE

4

75K6

O-RING

5

6812171

PLUG

6

6516229

PISTON SEAL

7

25K30210

O-RING Was 54K30210 - B

8

25K60212

O RING 10 Was 54K60212 - B

9

73K332

RING

10

25K40224

O RING 10 Was 54K40224 - B

11

6667328

SEAL

12

6686998

WIPER, ROD CYL Was 6666545 - A

13

6532563

PISTON

14

6532564

HEAD

15

6586508

SCREW

16

6807056

SHAFT

17

12H15

FITTING, GREASE 5 Grease

18

7008356

SEAL, QUAD

19

6587857

SEAL KIT W/Ref. 6, 7, 10-12, & 18
