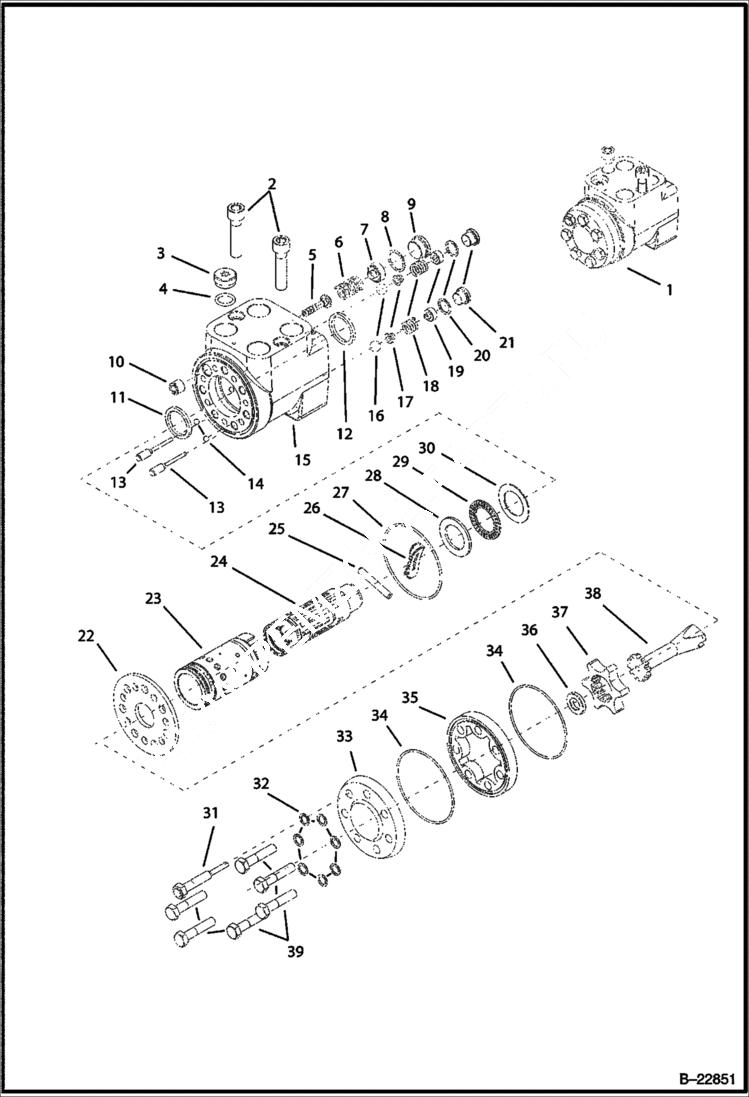

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Steering Unit HYDRAULIC SYSTEM

1

6961784

STEERING UNIT Ref. 2-39

2

BOLT NSS

3

PLUG NSS

4

O-RING NSS

5

SHUTTLE NSS

6

SPRING NSS

7

SPRING BLOCK NSS

8

SEAL NSS

9

PLUG NSS

10

PLUG NSS

11

RING NSS

12

RING NSS

13

BOLT NSS

14

BALL NSS

15

HOUSING NSS

16

BALL NSS

17

SPRING BLOCK NSS

18

SPRING NSS

19

SPRING BLOCK NSS

20

SEAL NSS

21

PLUG NSS

22

COLLAR NSS

23

SHAFT NSS

24

SHAFT NSS

25

PIN NSS

26

SPRING NSS

27

O-RING NSS

28

WASHER NSS

29

WASHER NSS

30

WASHER NSS

31

BOLT NSS

32

WASHER NSS

33

COVER NSS

34

O-RING NSS

35

INSERT NSS

36

WASHER NSS

37

GEAR NSS

38

SHAFT NSS

39

BOLT NSS
