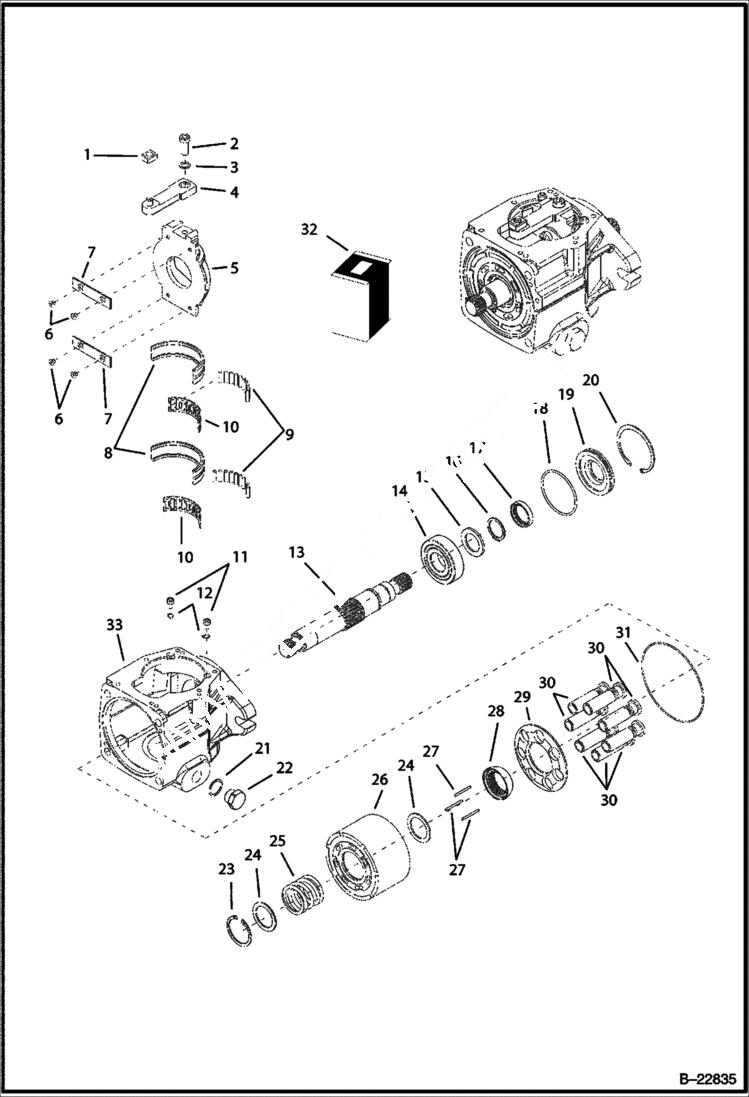

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Axiel Pump & Gear Pump HYDRAULIC SYSTEM

1

BLOCK NLA

2

BOLT NLA

3

WASHER NLA

4

LEVER NLA

5

SHANK NLA

6

BOLT NLA

7

PLATE NLA

8

SHELL NLA

9

ROLLER NLA

10

CAGE NLA

11

BOLT NLA

12

WIRE NLA

13

6683530

SHAFT

14

BEARING NLA

15

RING NLA

16

6682047

SNAP RING

17

6682046

SEAL

18

6682044

SEAL

19

6682045

SEAL

20

6682043

SNAP RING

21

6683535

WASHER

22

6683436

PLUG

23

RING NLA

24

WASHER NLA

25

SPRING NLA

26

DRUM NLA

27

BAR NLA

28

RING NLA

29

HOLDER NLA

30

PISTON NLA

31

6683533

O-RING

32

6683529

BEARING

33

6683534

HOUSING
