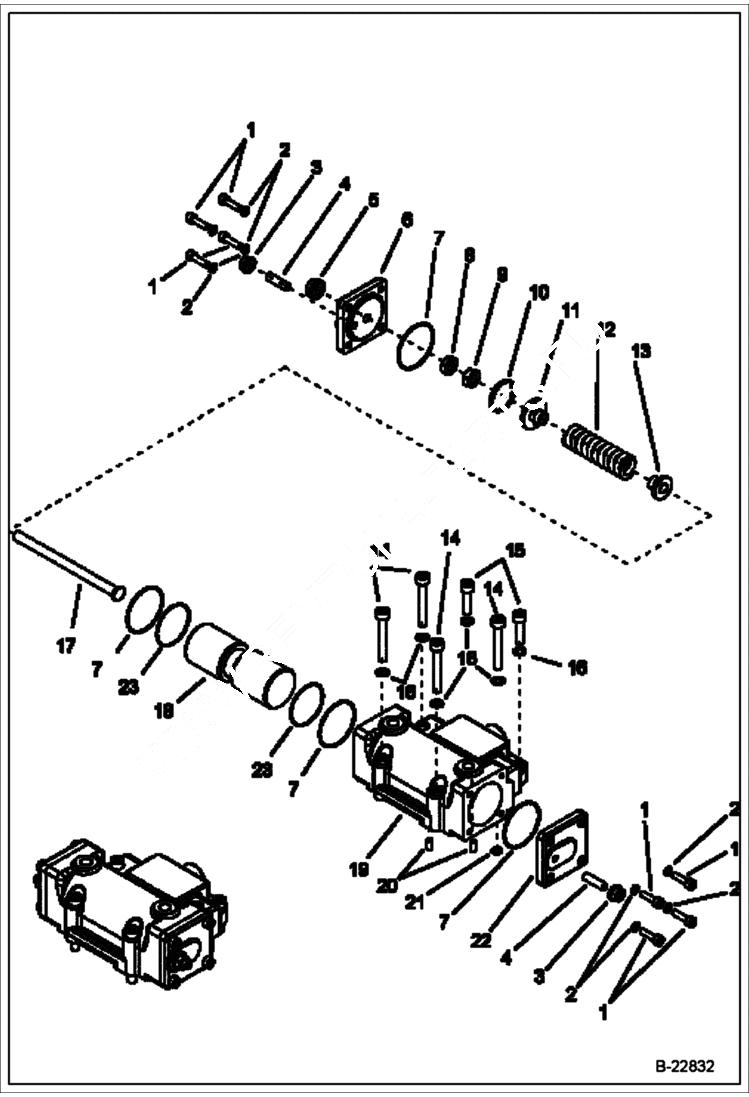

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Axiel Pump & Gear Pump HYDRAULIC SYSTEM

1

6683510

BOLT

2

6683512

WASHER

3

6683420

NUT

4

6683522

BOLT

5

6683521

NUT

6

6683520

COVER

7

6683515

O-RING

8

6963519

NUT

9

6683518

NUT

10

6683523

RING

11

6683517

SPRING BLOCK

12

6683525

SPRING

13

6683514

SPRING BLOCK

14

6683511

BOLT

15

6683528

BOLT

16

6667288

WASHER

17

6683524

BOLT

18

6683526

PISTON

19

6683527

BODY

20

6682071

PIN

21

6682052

O-RING

22

6683513

COVER

23

6683516

SEAL/O-RING
