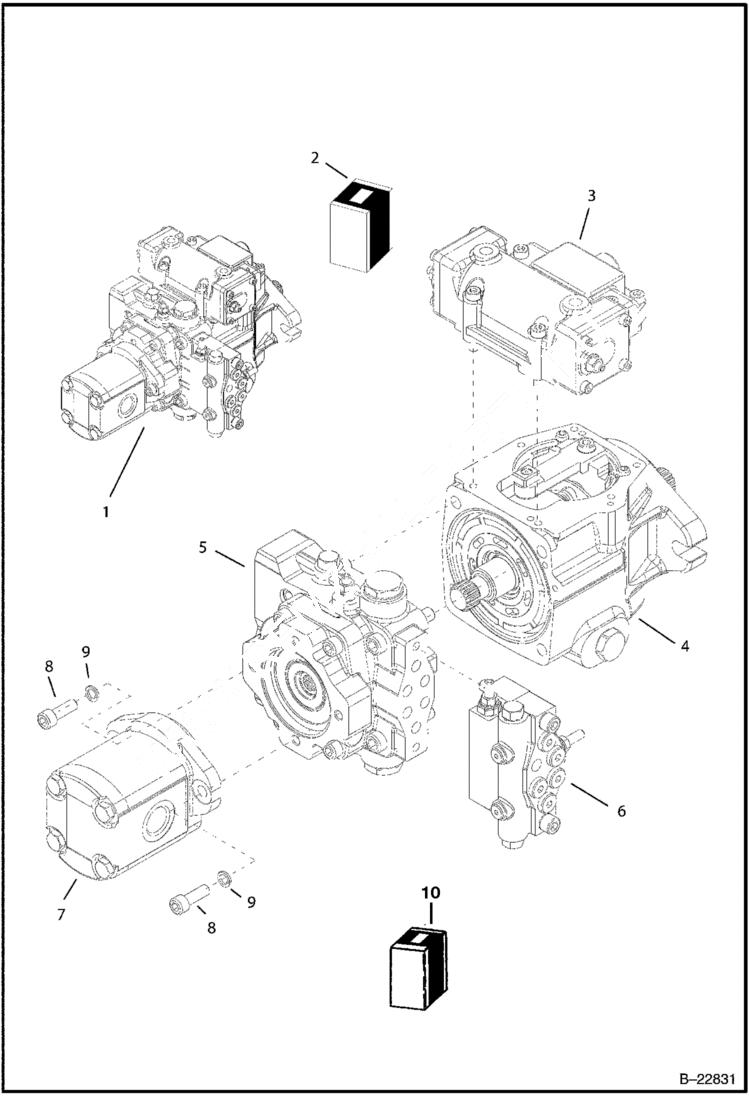

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Axiel Pump & Gear Pump HYDRAULIC SYSTEM

1

6961300

PUMP SET axiel & gear - ref. 2, 7

2

6960986

PUMP axiel - ref. 4 - 6

3

PUMP NLA

4

PUMP NLA

5

PUMP NLA

6

PUMP NLA

7

6962719

PUMP

8

1GM1030

BOLT

9

8EM100

WASHER

10

6684438

SEAL KIT for gear pump
