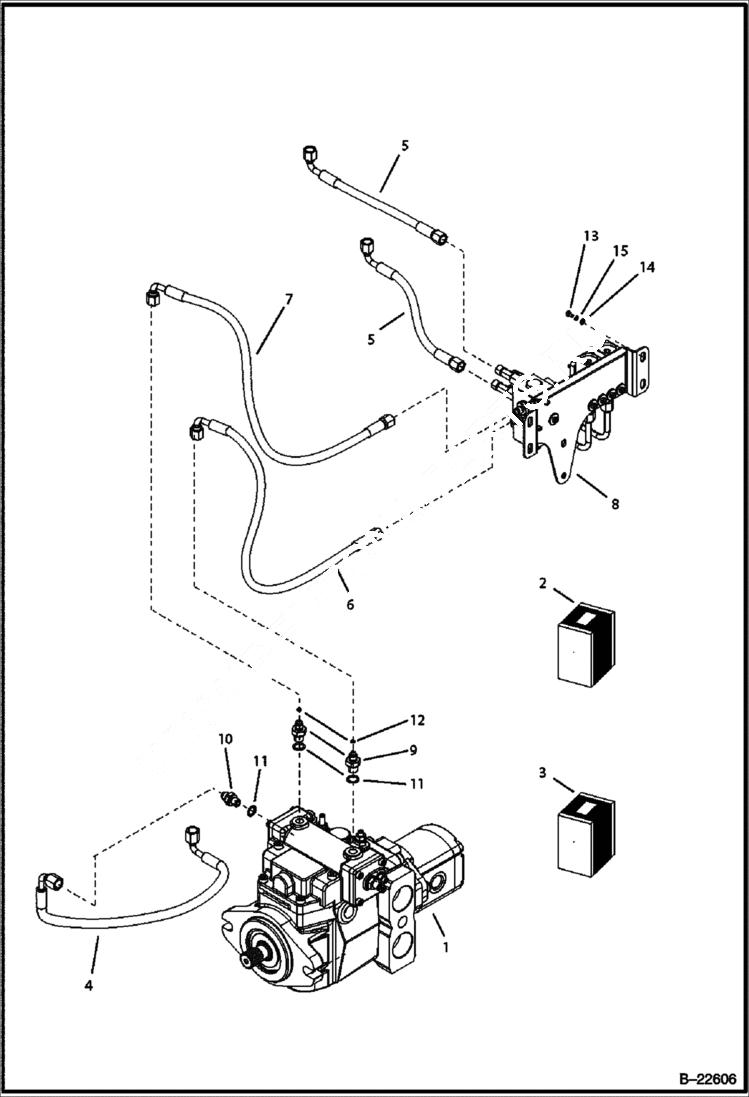

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM

1

6961300

PUMP SET

2

6966072

FITTING Ref. 9, 11

3

6966071

FITTING Ref. 10, 12

4

6965898

HOSE

5

6965900

HOSE

6

6965901

HOSE

7

6965903

HOSE

8

6973598

DRIVING BLOCK

9

FITTING NLA

10

FITTING NLA

11

6969372

SEAL

12

6967292

CAP

13

1CM820

BOLT

14

6964587

WASHER

15

8EM80

WASHER
