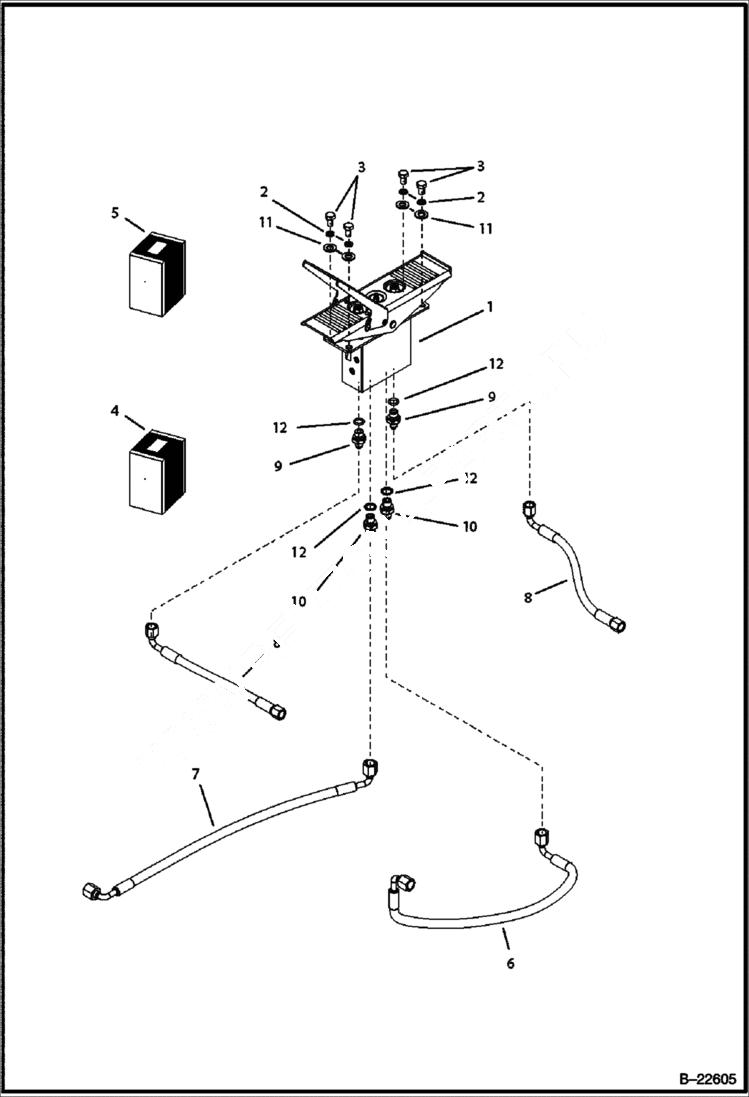

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM

1

6963657

PEDAL

2

8EM80

WASHER

3

1CM816

BOLT Was 4CM816 - A

4

6966072

FITTING Ref. 10, 13

5

6966071

FITTING Ref. 9, 11, 12

6

6965989

HOSE

7

6965900

HOSE

8

6965938

HOSE

9

FITTING NLA

10

FITTING NLA

11

6969487

VALVE

12

6969372

SEAL
