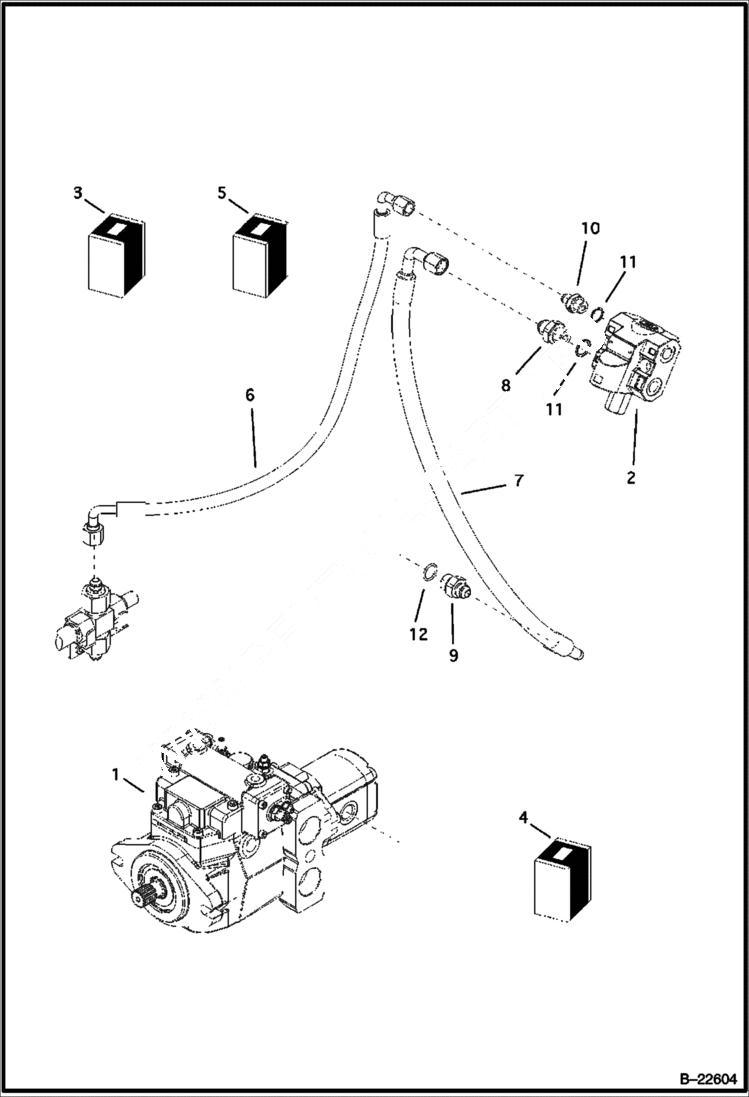

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM

1

6961300

PUMP SET

2

VALVE NLA - Order 6961784 - Was 6961795 - A

3

6966069

FITTING Ref. 8, 11

4

15KB0810

FITTING, HYD CONNECTOR Ref. 9, 12

5

6966070

FITTING Ref. 10, 13

6

6965884

HOSE

7

6965887

HOSE

8

FITTING NLA

9

FITTING NLA

10

FITTING NLA

11

6969370

SEAL

12

6969378

O-RING
