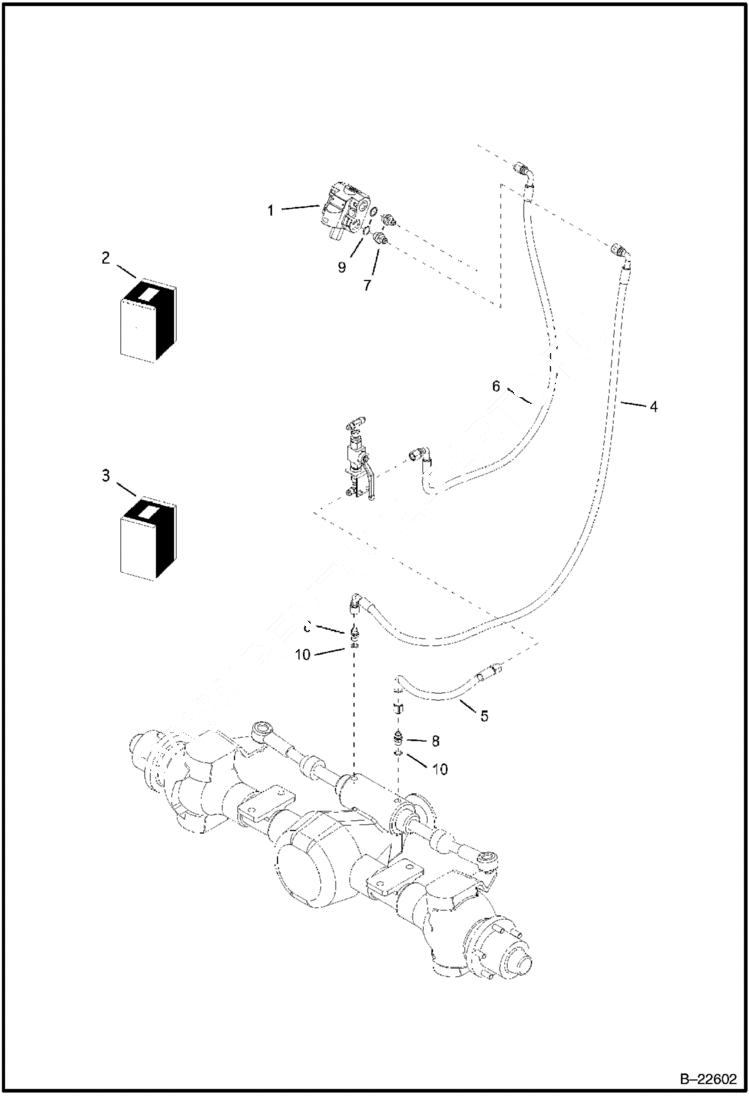

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM

1

VALVE NLA - Order 6961784 - Was 6961795 - A

2

6966070

FITTING Ref. 7, 9

3

15KB0606

FITTING, HYD CONNECTOR Ref. 8, 10

4

6965932

HOSE

5

6965933

HOSE

6

6965936

HOSE

7

FITTING NLA

8

FITTING NLA

9

6969370

SEAL

10

6969377

SEAL
