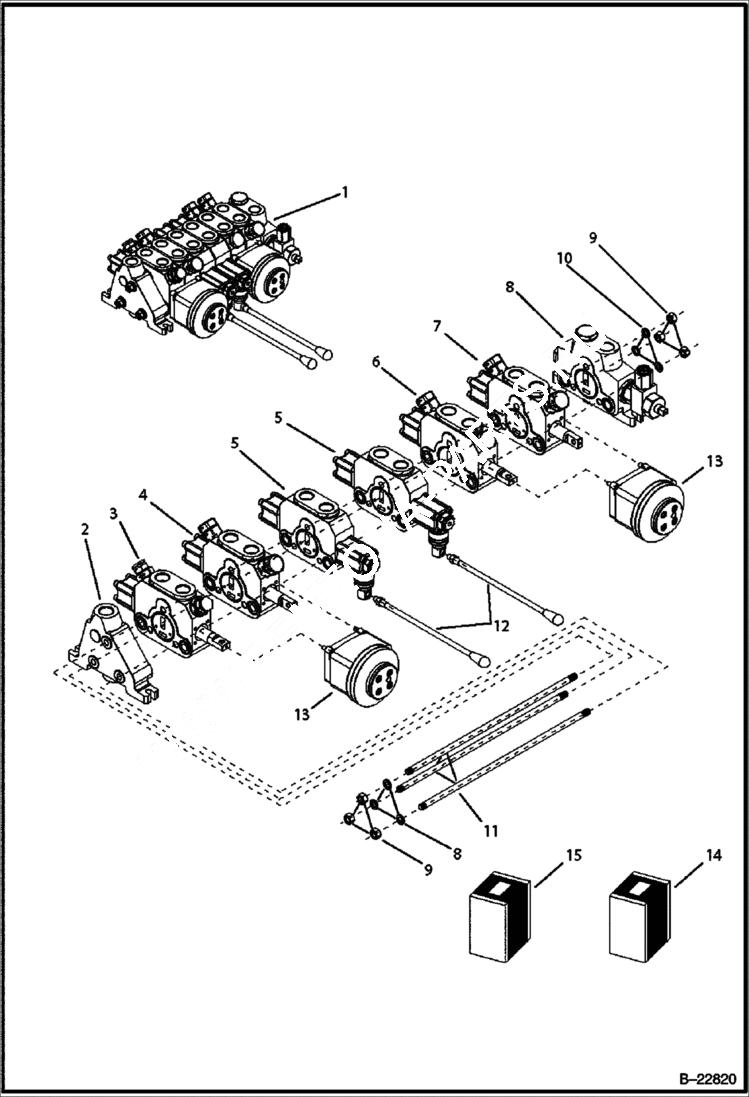

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Backhoe Control Valve HYDRAULIC SYSTEM

1

6973577

VALVE W/Ref. 2-8, 13-15

2

6969498

SECTION

3

6969497

SECTION

4

6969981

SECTION

5

6969980

SECTION

6

6969766

WORKING SECTION

7

6969978

SECTION

8

6682410

SECTION

9

NUT NLA

10

WASHER NLA

11

BOLT NLA

12

LEVER NLA

13

6682356

KIT Was 6969492 - A

14

6969498

SECTION

15

6969982

SEAL KIT
