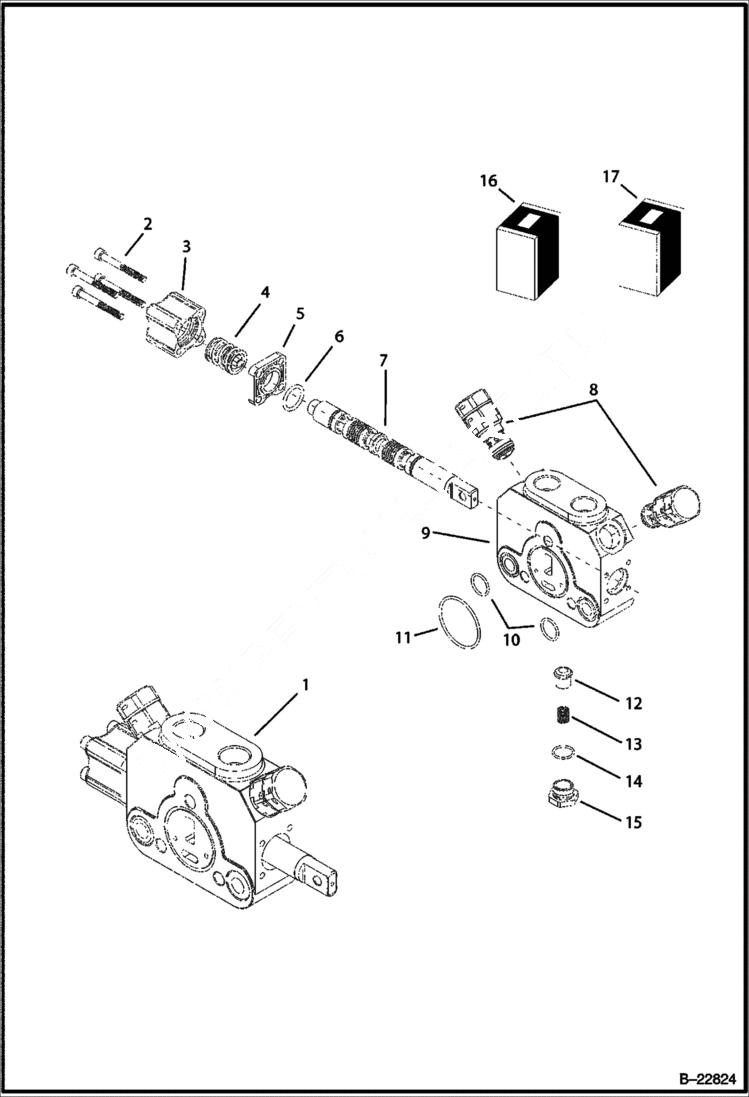

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Backhoe Control Valve HYDRAULIC SYSTEM

1

6683266

SECTION ref. 2-15

2

BOLT NSS

3

COVER NSS

4

SPRING-UNIT NSS

5

COVER NSS

6

O-RING NSS

7

SHAFT NSS

8

6682360

VALVE

8

6691275

SEAL KIT

9

BODY NSS

10

O-RING NSS

11

O-RING NSS

12

CYLINDER NSS

13

SPRING NSS

14

O-RING NSS

15

PLUG NSS

16

6682357

VALVE KIT ref 12, 13, 14, 15

17

6683281

CAP
