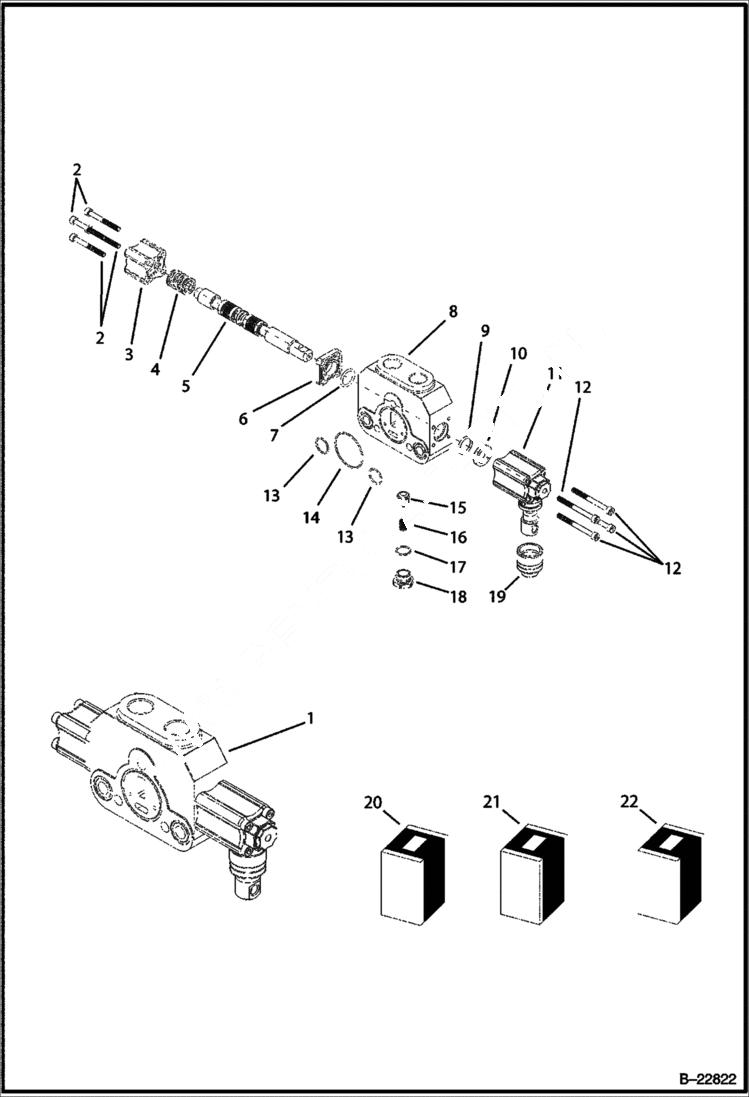

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Backhoe Control Valve HYDRAULIC SYSTEM

1

6683268

SECTION ref. 2-19

2

BOLT NSS

3

COVER NSS

4

SPRING-UNIT NSS

5

SHAFT NSS

6

COVER NSS

7

O-RING NSS

8

BODY NSS

9

O-RING NSS

10

RING NSS

11

COVER NSS

12

BOLT NSS

13

O-RING NSS

14

O-RING NSS

15

VALVE NSS

16

SPRING NSS

17

O-RING NSS

18

PLUG NSS

19

COVER NSS

20

6682357

VALVE KIT ref 12, 13, 14, 15

21

6683281

CAP

22

6683282

COMPONENT
