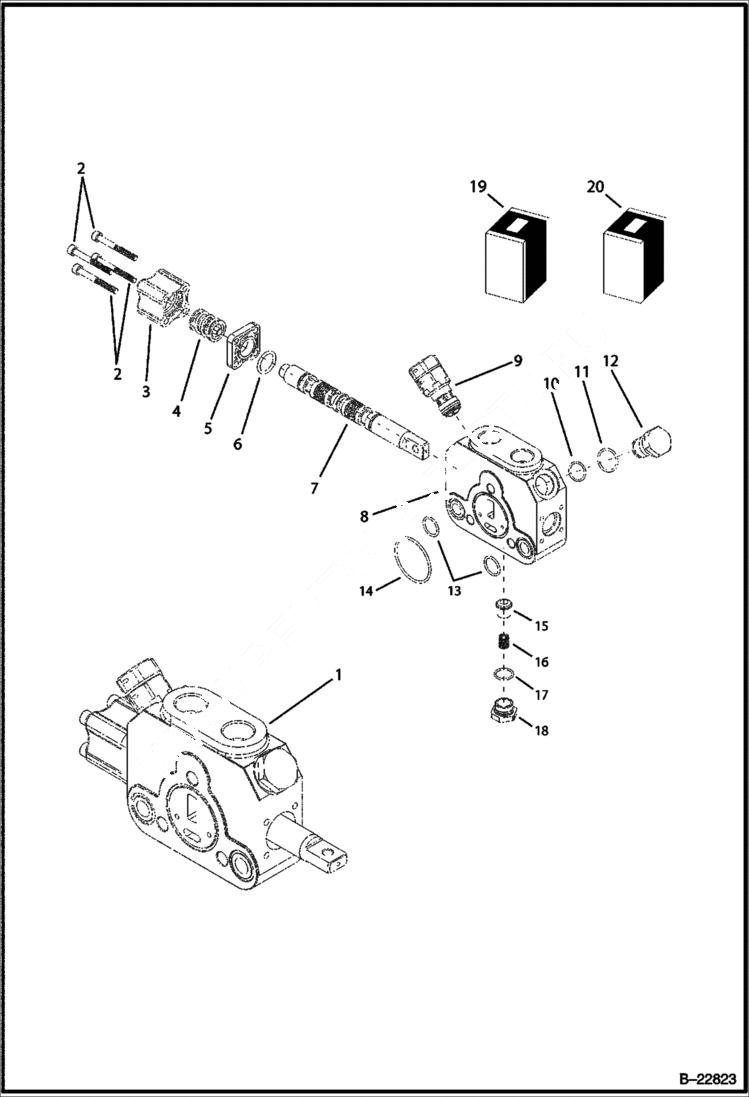

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Backhoe Control Valve HYDRAULIC SYSTEM

1

SECTION NSS - ref. 2-18

2

BOLT NSS

3

COVER NSS

4

SPRING-UNIT NSS

5

COVER NSS

6

O-RING NSS

7

SHAFT NSS

8

BODY NSS

9

6682360

VALVE

9

6691275

SEAL KIT

10

O-RING NSS

11

O-RING NSS

12

PLUG NSS

13

O-RING NSS

14

O-RING NSS

15

VALVE NSS

16

SPRING NSS

17

O-RING NSS

18

PLUG NSS

19

6682357

VALVE KIT ref 15, 16, 17, 18

20

6683281

CAP
