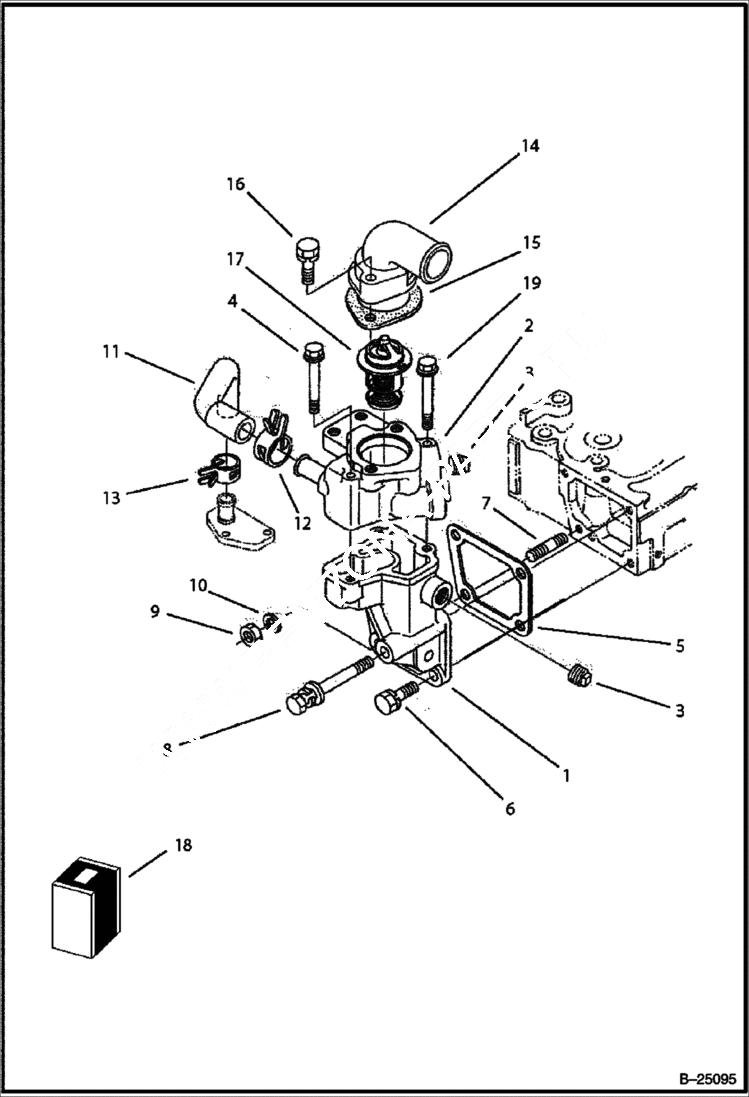

Запчасти Bobcat B300 WATER FLANGE & THERMOSTAT Tier II 5731 11001 & Above POWER UNIT

1

FLANGE NLA - Order 6684854 - Was 6684855 - A

2

FLANGE NLA - Order 6684854 - Was 6684856 - A

3

6684857

PLUG

4

6684858

BOLT

5

6666802

GASKET

6

4CM822

BOLT Was 6969843 - A

7

6652670

STUD

8

6969844

BOLT

9

6652792

NUT

10

6667422

WASHER

11

6684862

PIPE

12

6675618

CLAMP

13

6684889

CLAMP

14

6651489

COVER

15

6684863

GASKET

16

6969799

BOLT

17

6685520

THERMOSTAT

18

6684854

FLANGE ASSY W/Ref. 1-4 & 19

19

6685104

BOLT
